Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1988
>>
C 1500 Truck 2WD V6-262 4.3L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
W/Auto Trans (Federal - Altitude)
W/Auto Trans (Federal - Altitude)

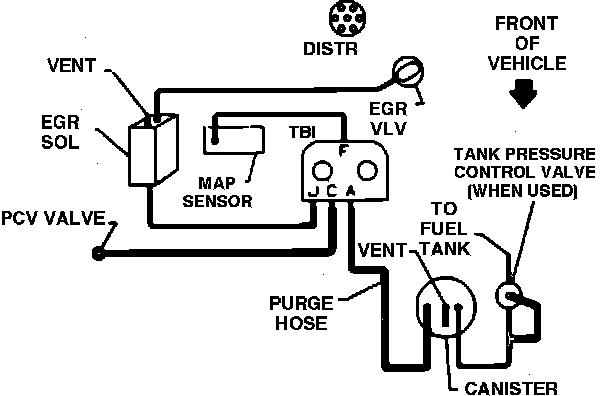

Vacuum & Vapor Hose Diagram:
