Power Steering Pump Replacement

POWER STEERING PUMP REPLACEMENT






TOOL REQUIRED:
- J 29785-A Puller
- J 25033-B Pulley Installer

REMOVE OR DISCONNECT

- Place a drain pan below the pump.

1. Hoses. Cap the hoses.
2. Loosen the tensioner assembly.
3. Belt.

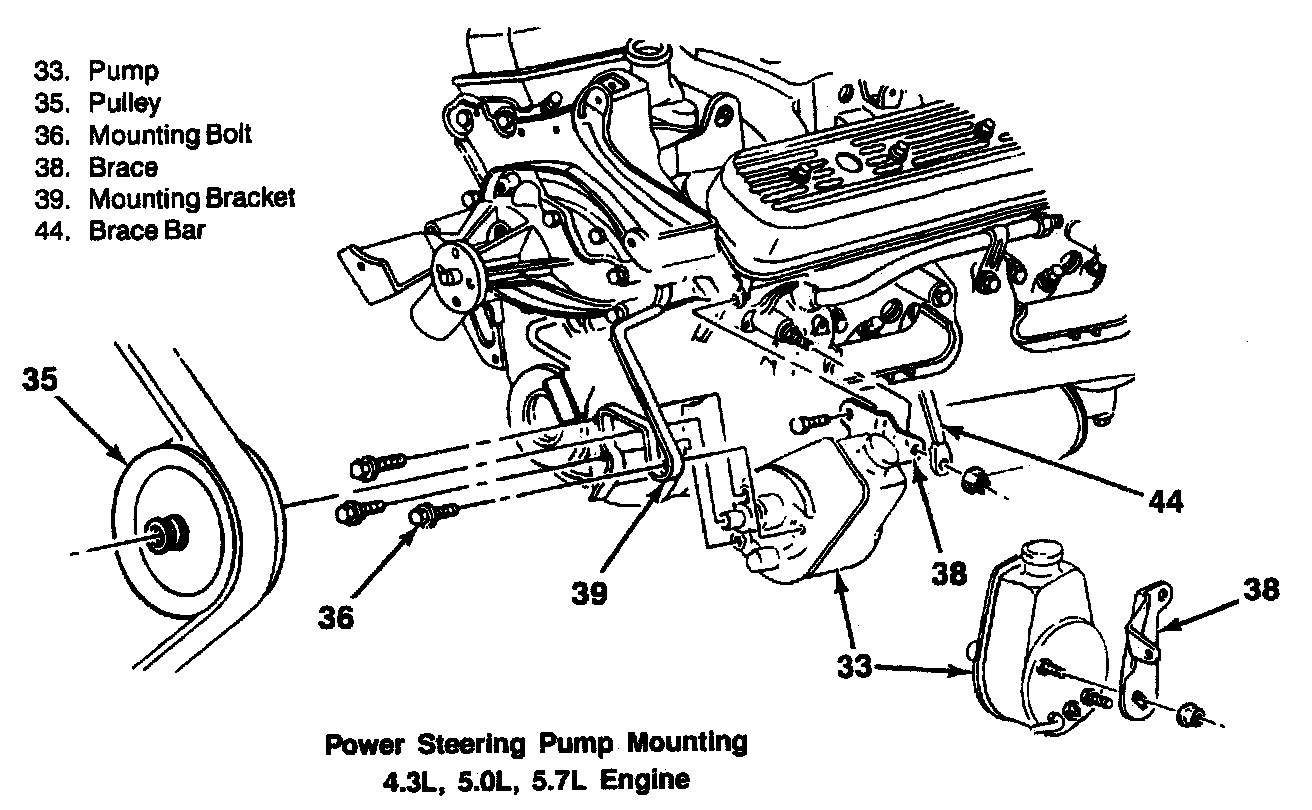

4. Pulley (35).
- Install J 29785-A. Be sure the pilot bolt bottoms in the pump shaft by turning the nut to the top of the pilot bolt.
- Hold the pilot bolt.
- Turn the nut counterclockwise.

5. Front mounting bolts (36).
6. Pump (33).

INSTALL OR CONNECT
1. Pump (33).
2. Mounting bolts (36).

TIGHTEN
- Bolts to 50 Nm (37 lbs. ft.).

3. Pulley
- Place pulley on the end of the pump shaft.
- Install J 25033-B. Be sure the pilot bolt bottoms in the shaft by turning the nut to the top of the pilot bolt.
- Hold the pilot bolt.
- Turn the nut clockwise.

4. Belt.
6. Hoses.
- Fill and bleed the system.

INSPECT
- Hoses for clearance.
