Home >> Chevy Truck >> 1988 >> C 3500 Truck 2WD V8-379 6.2L DSL >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Vehicle Speed Sensor >> Testing and Inspection >> Component Tests and General Diagnostics >> Test C: Programmer Clip Test >> Table 1

Table 1

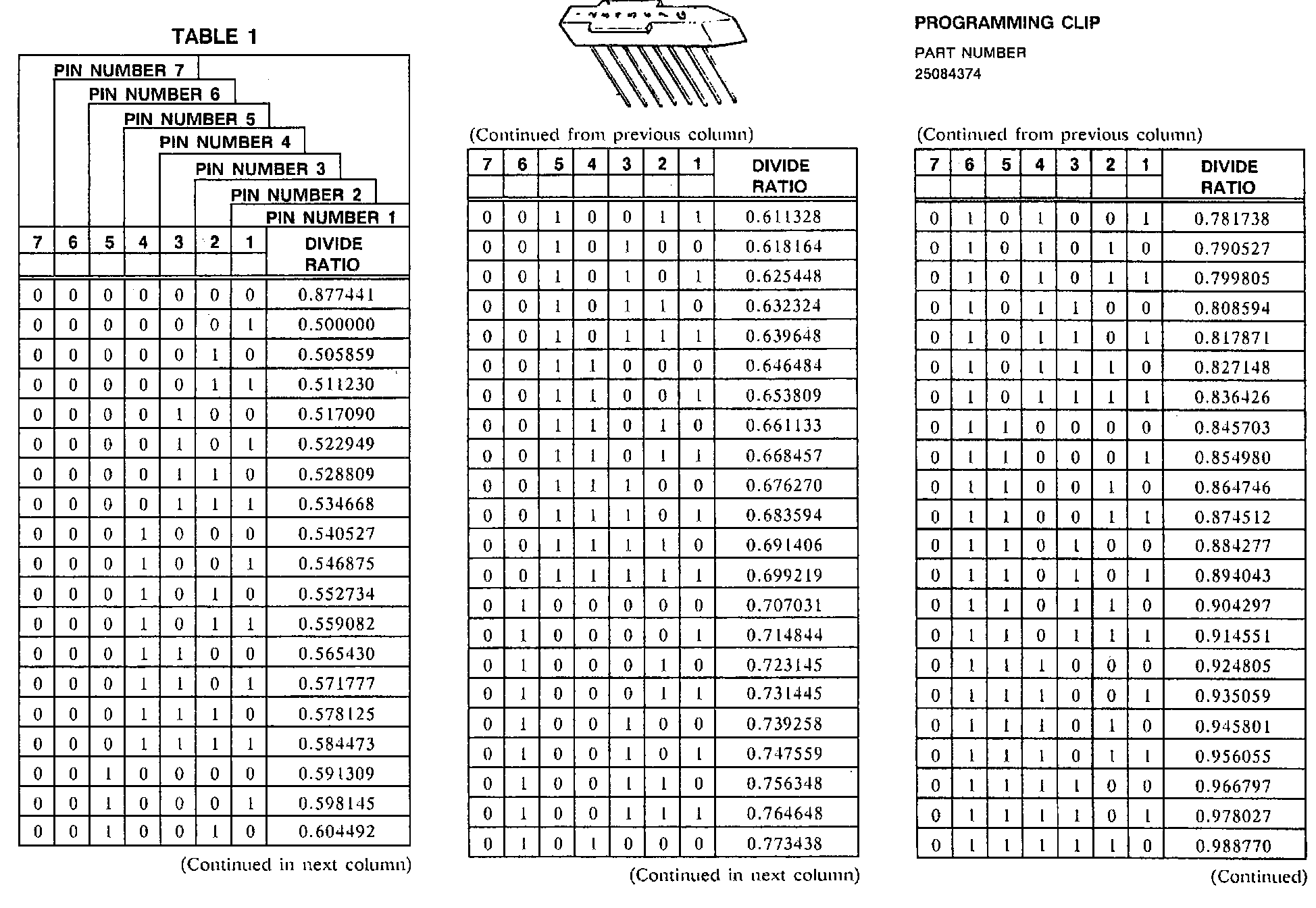

Table 1 (1 Of 2):

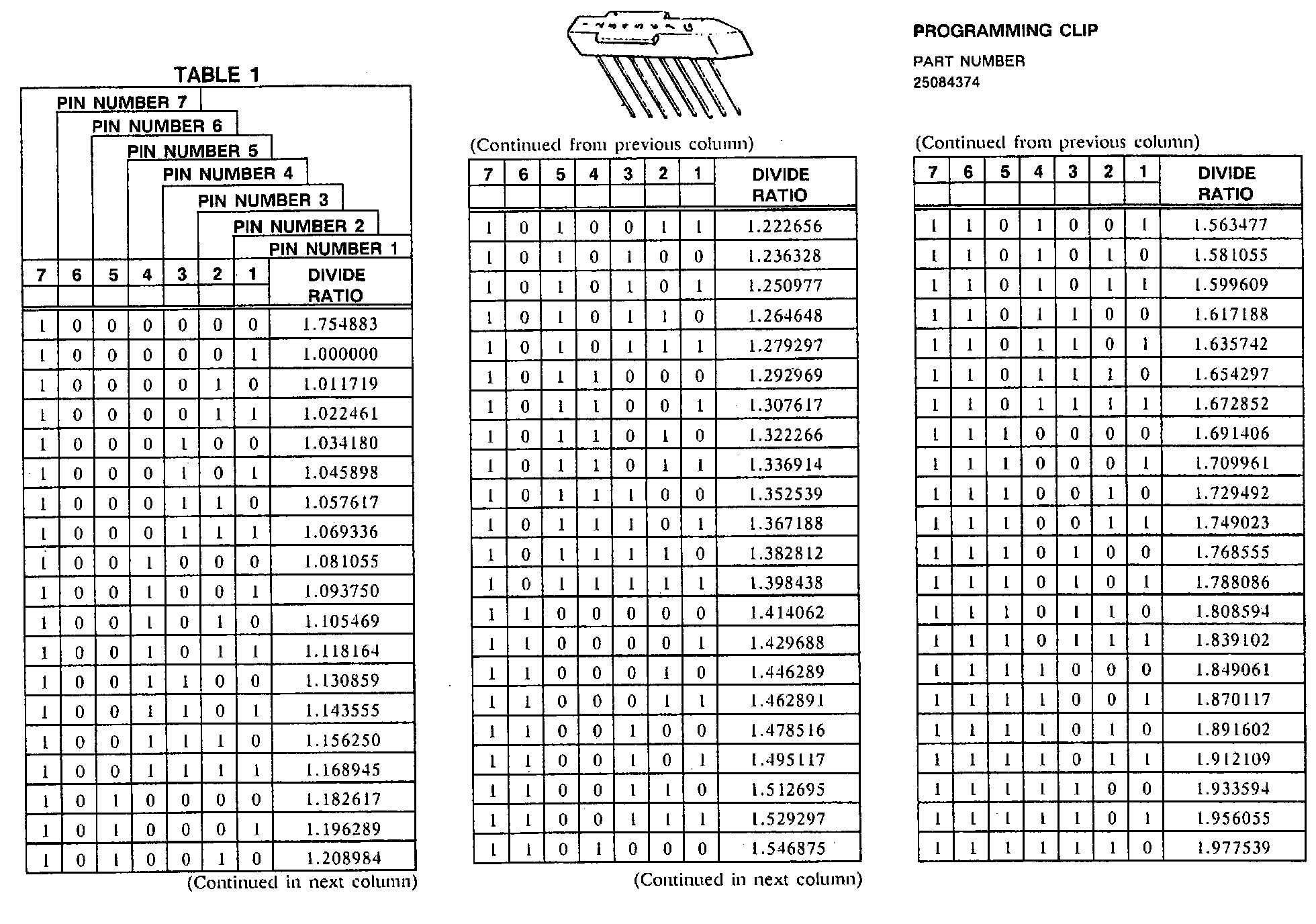

Table 1 (2 Of 2):
