Rear Air Conditioner Blower Assembly

Rear Air Conditioner Blower Motor

Removal

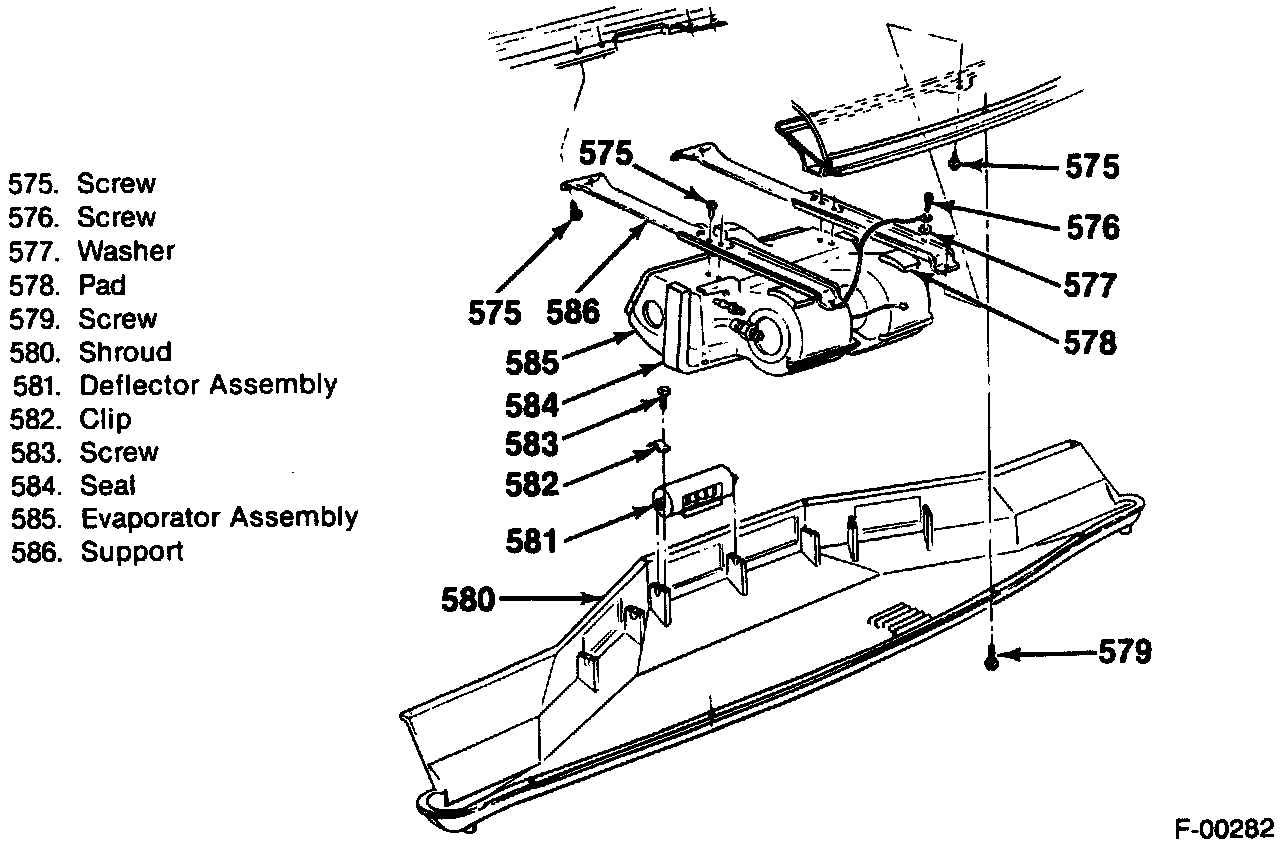

1. Remove cover plate.
2. Seperate the upper and lower case halves.

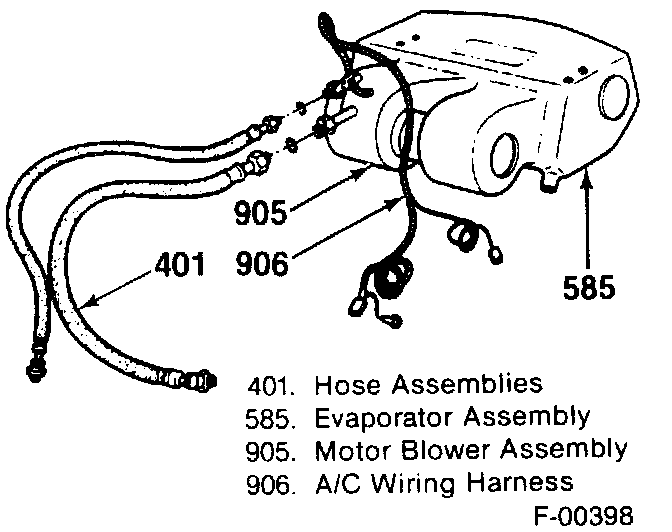

3. Remove blower motor mounting strap screw.
4. Remove blower motor assembly.
5. Remove wheels from the motor shaft.














Installation

1. Attach blower wheels to the blower motor shaft.

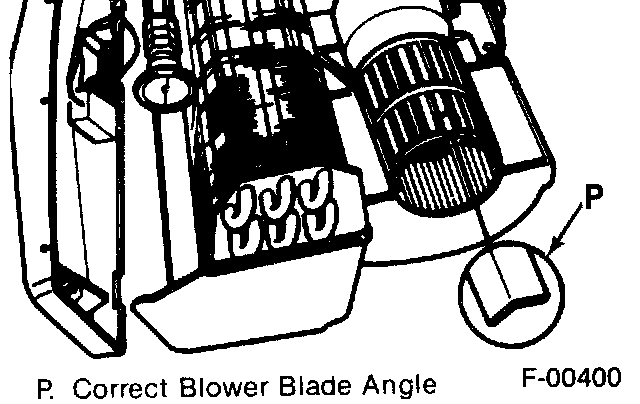

Note: Place the wheels with the lower blades curved toward the dash panel side of the unit when the motor is placed in the case.(P)

2. Reattach the blower motor mounting strap and screw.
3. Merge both halves of the case together and reinstall cover plate.
