Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1988
>>
G 10 Van V8-350 5.7L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Electronic/Powertrain Control Module (ECM/PCM)
>>
ECM/PCM Inputs/Outputs
>>
ECM/PCM Outputs
ECM/PCM Outputs

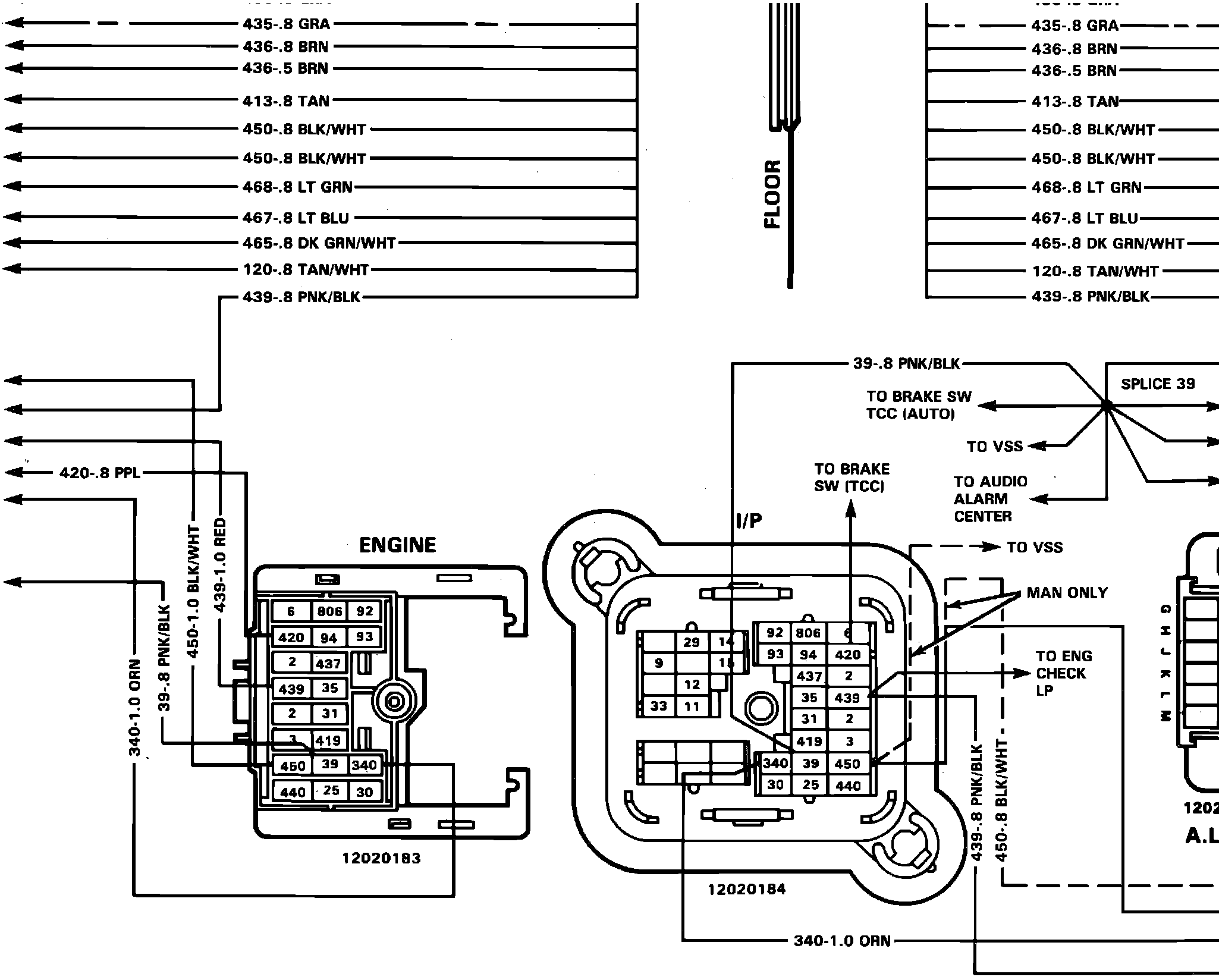

.�#�I�#Cs�#Outputs, Part 1 Of 2 (Fuel Inj Eng):

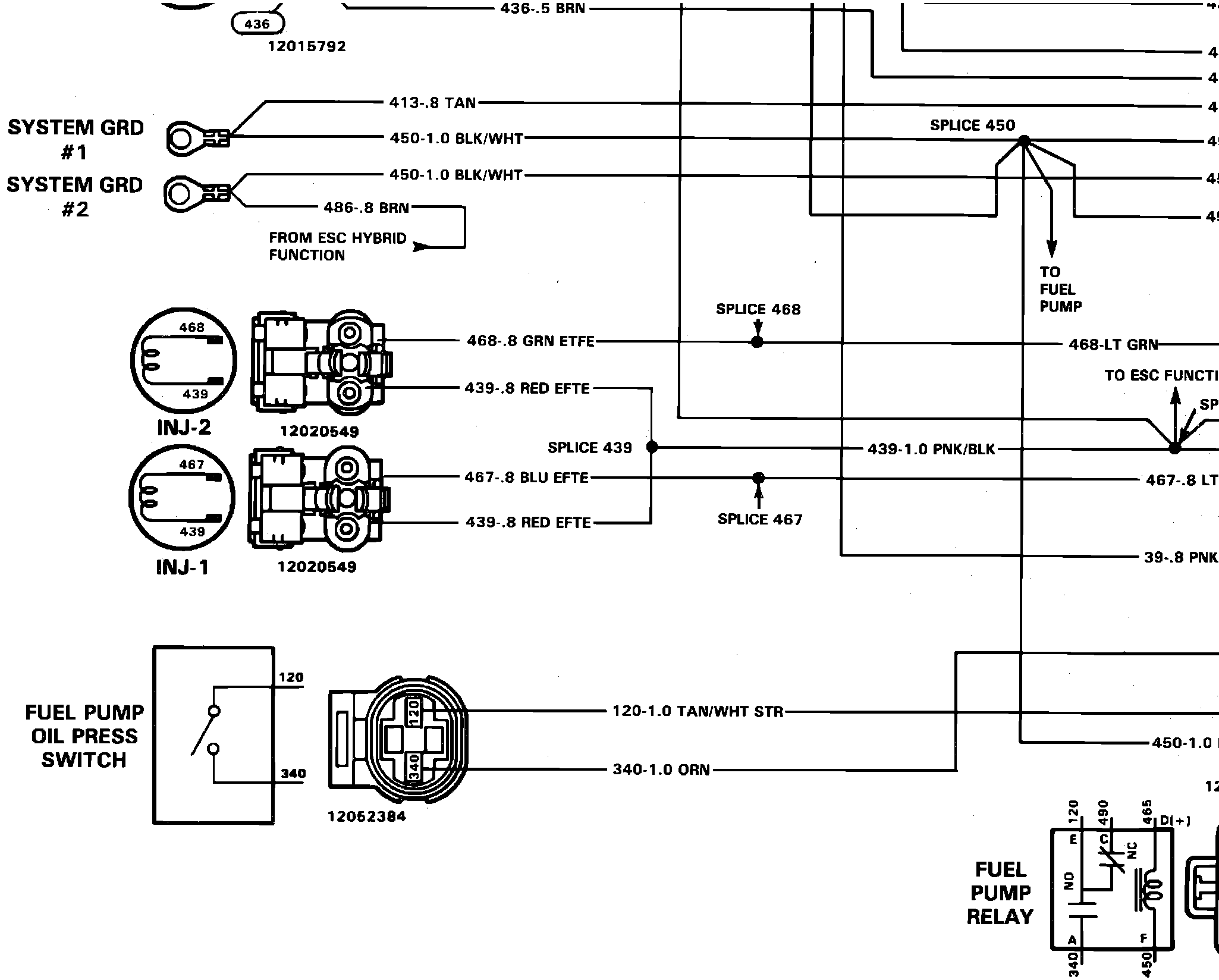

���#��#~(�#Outputs, Part 2 Of 2 (Fuel Inj Eng):
