Emission Control Systems: Locations

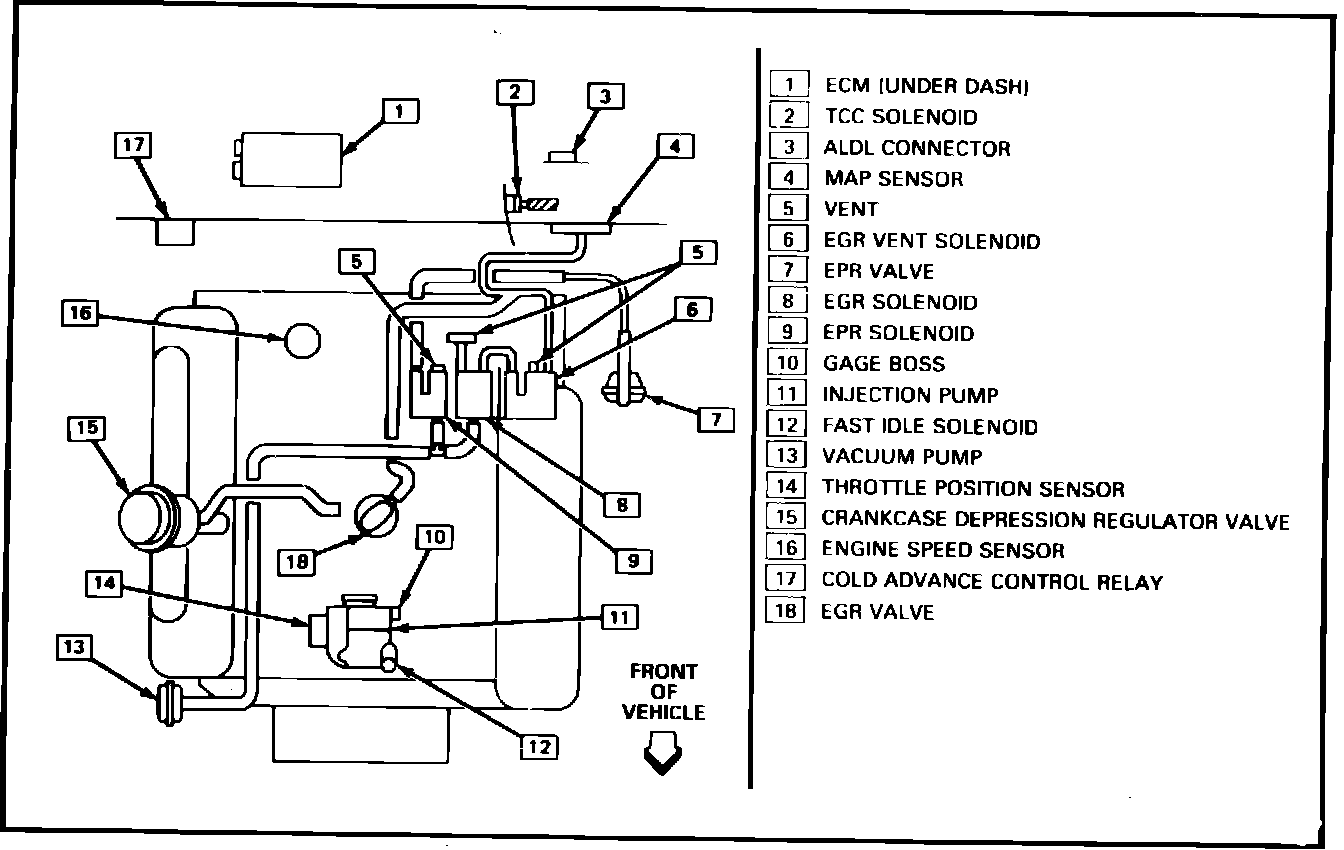

Fig. 140 Emission components locations. 1988 V8-379 Diesel light duty emissions:
