Air Door Actuator / Motor: Service and Repair

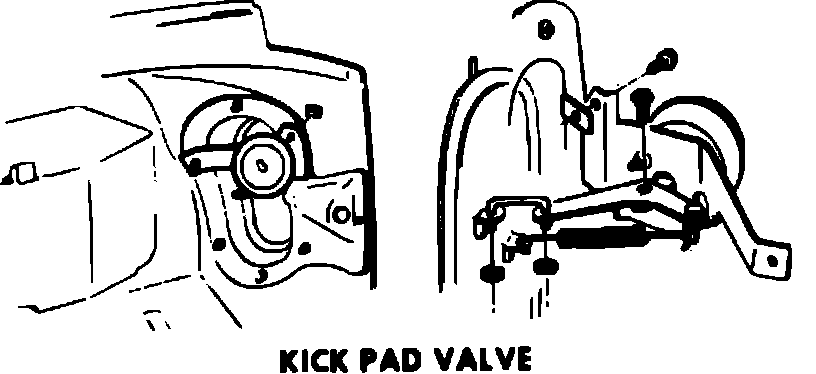

Fig. 1 Air inlet valve installation. R & V Series:

C, K, G, R & V SERIES

1. Disconnect vacuum line from actuator, Fig. 1.
2. Disconnect return spring from actuator.
3. Remove actuator bracket retaining screws.
4. Remove actuator arm screw.
5. Separate actuator arm and bracket from cam, then remove actuator and bracket.
6. Remove actuator from bracket.
7. Reverse procedure to install.
