Home >> Chevy Truck >> 1988 >> G 20 Van V8-350 5.7L >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Sensors and Switches - Fuel Delivery and Air Induction >> Fuel Tank Selector Switch >> Testing and Inspection

Fuel Tank Selector Switch: Testing and Inspection

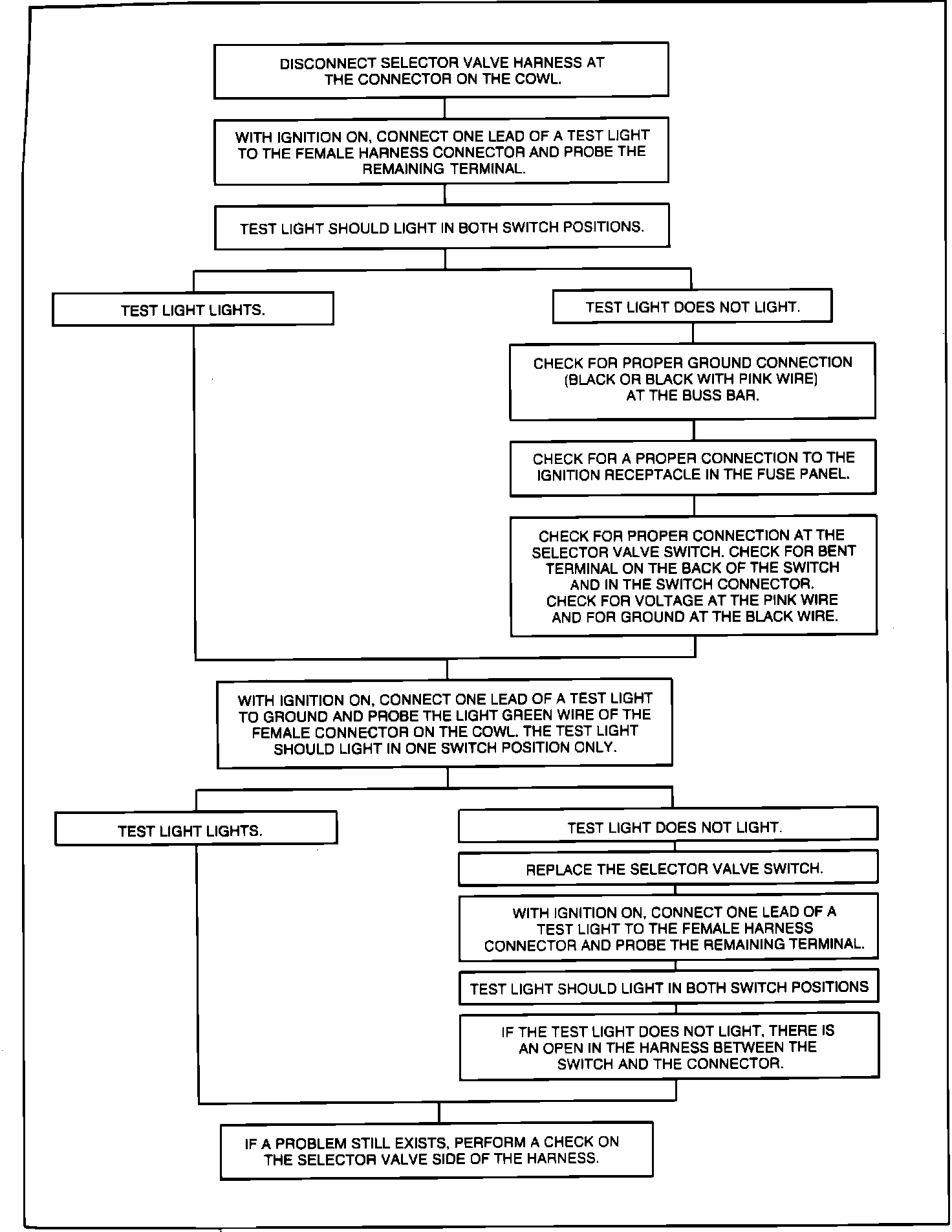

Auxiliary Fuel Tank Selector Diagnostic Chart:
