Chevy Truck
>>
1988
>>
G 20 Van V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Headlamp
Headlamp

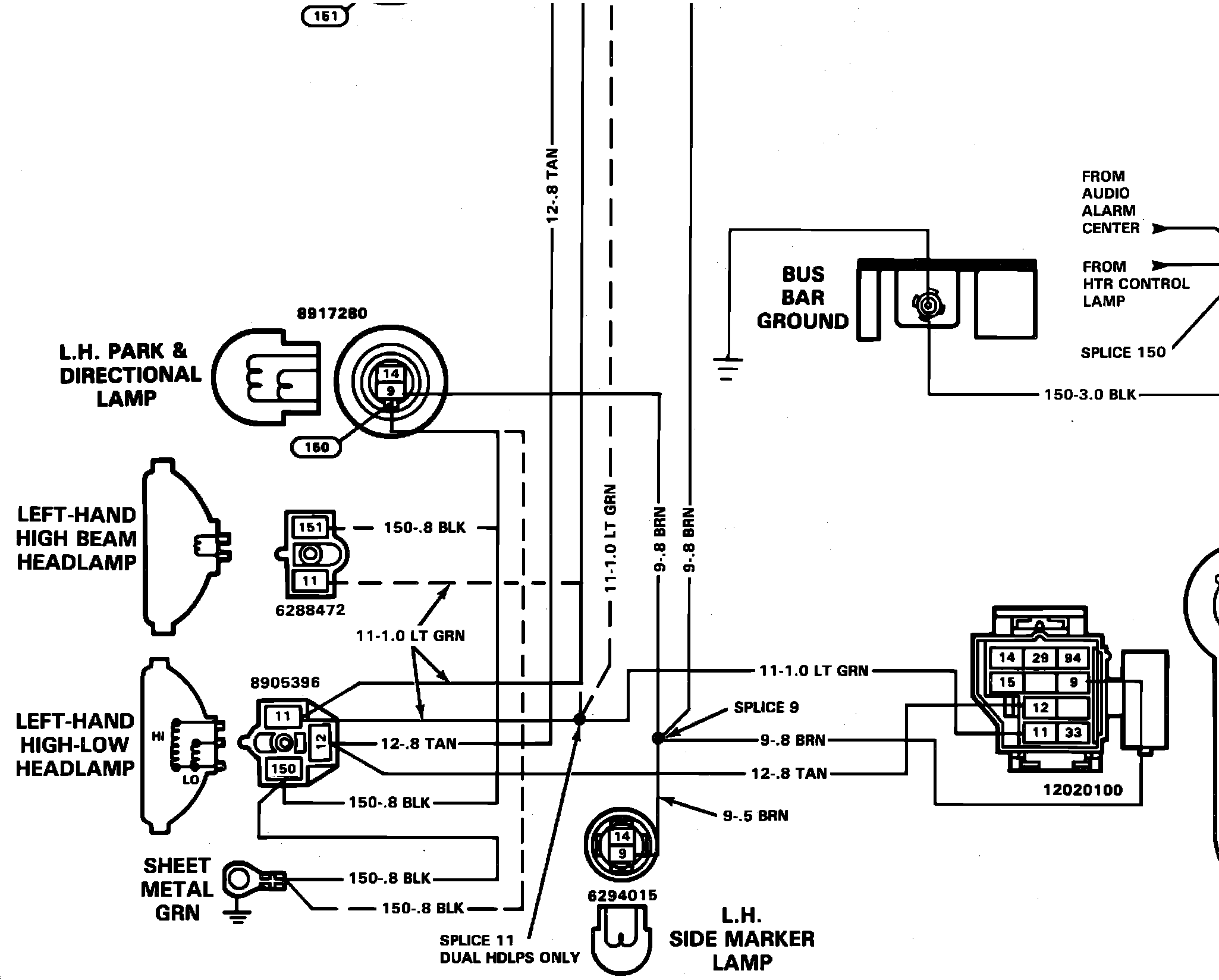

n~$D\�$D��$DExter Lamp Wiring Circuit (Headlamp & Parking Lamp Harness):
