Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1988
>>
G 30 Van V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

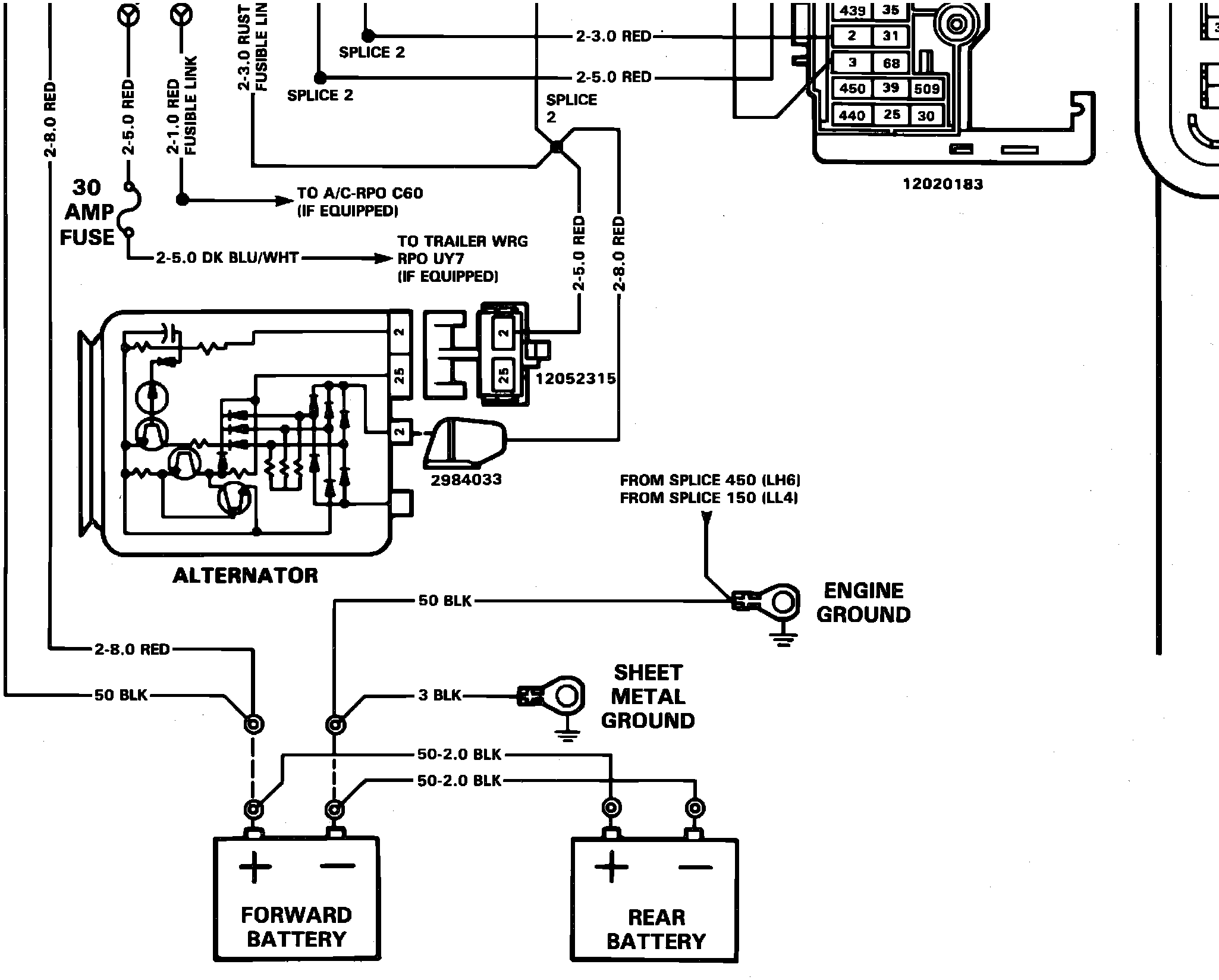

Power Distribution Wiring Circuit
Power Distribution Wiring Circuit
c^�2���2���2Power Distribution Wiring Circuit:
