A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
Diagnostic Trouble Code Descriptions

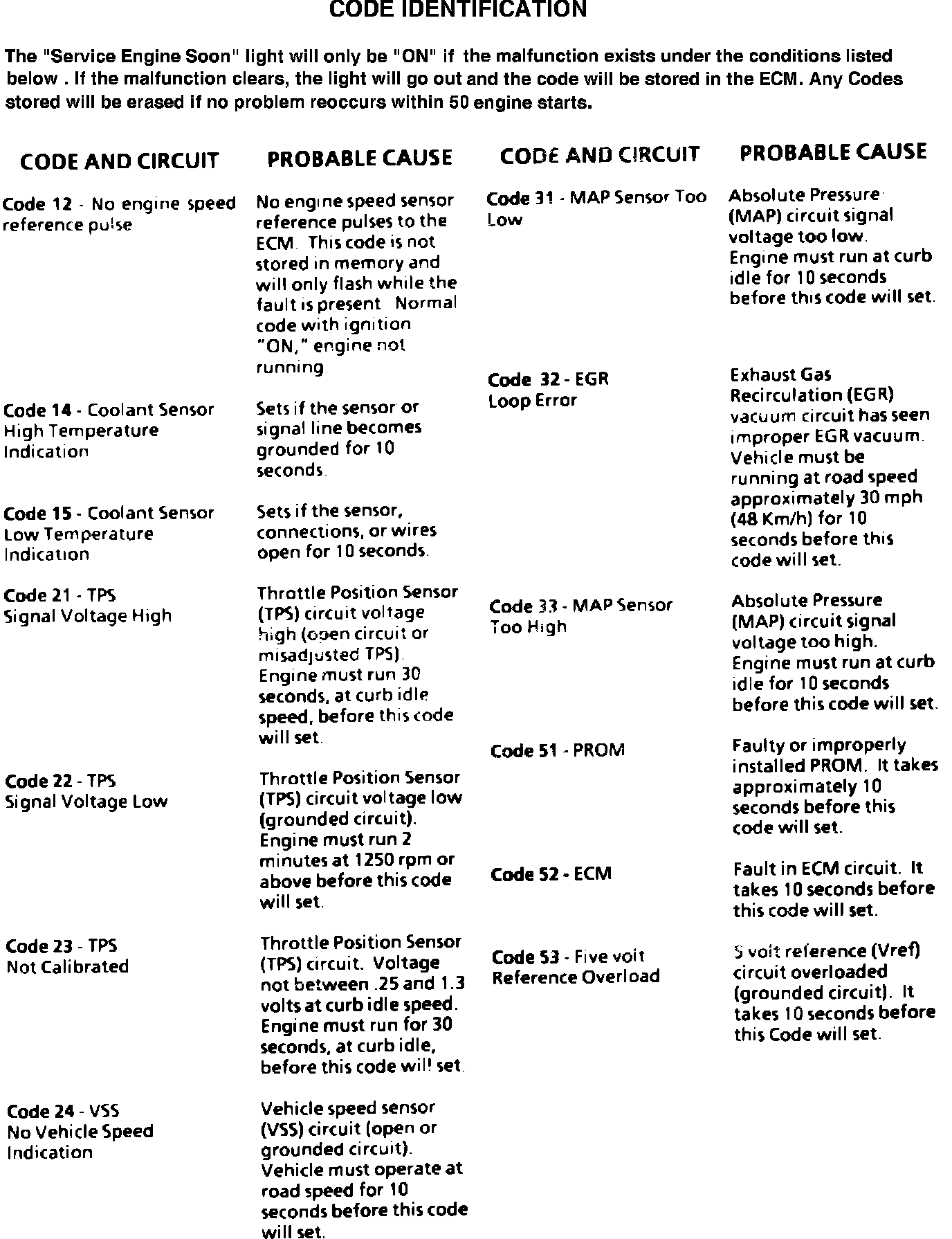

Fig. 39 Trouble code identification. 1988:
