Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1988
>>
K 3500 Truck 4WD V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

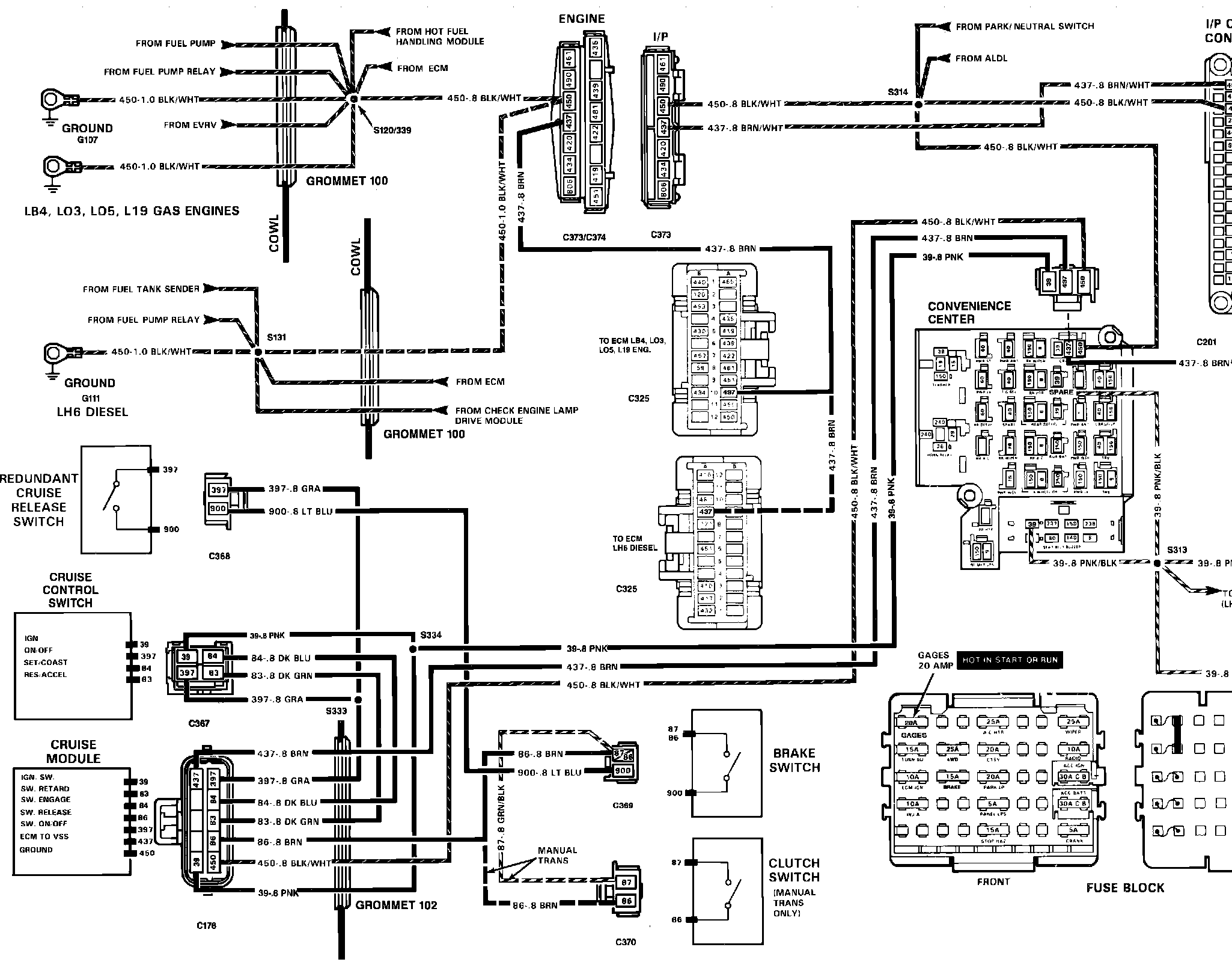

Cruise Control Schematic:
�7 @Cruise Control:
