Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1988
>>
R 20 P/U 2WD V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Glow Plugs/Fuel Control
>>
VIN C
VIN C

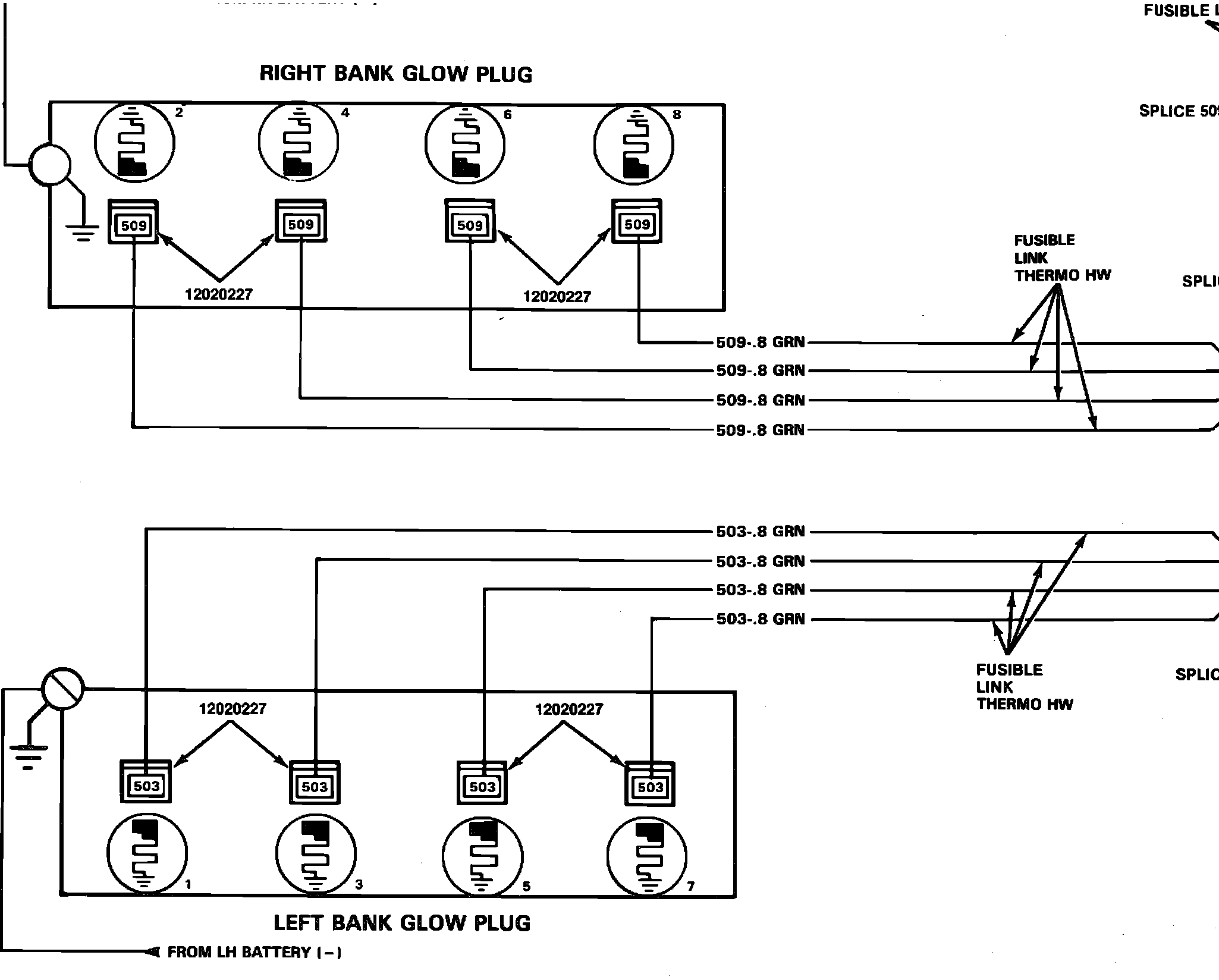

�/%�T%�X%Glow Plug Wiring Circuit (Vin C):
