Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1988
>>
R 20 P/U 2WD V8-454 7.4L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
With Manual A/C
>>

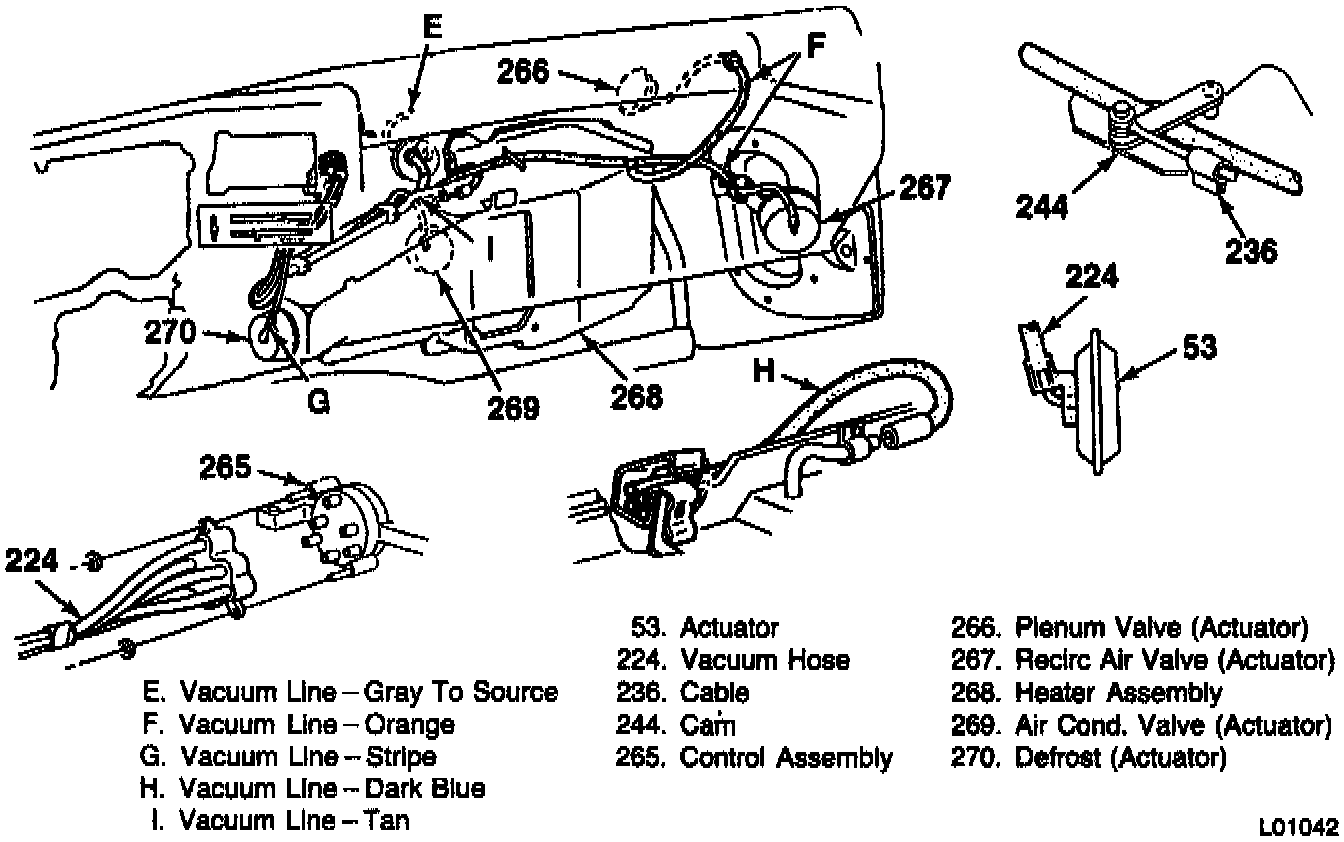

Dashboard Vacuum Hose Diagram
Dashboard Vacuum Hose Diagram
