Air Diverter Module
Air Diverter Module

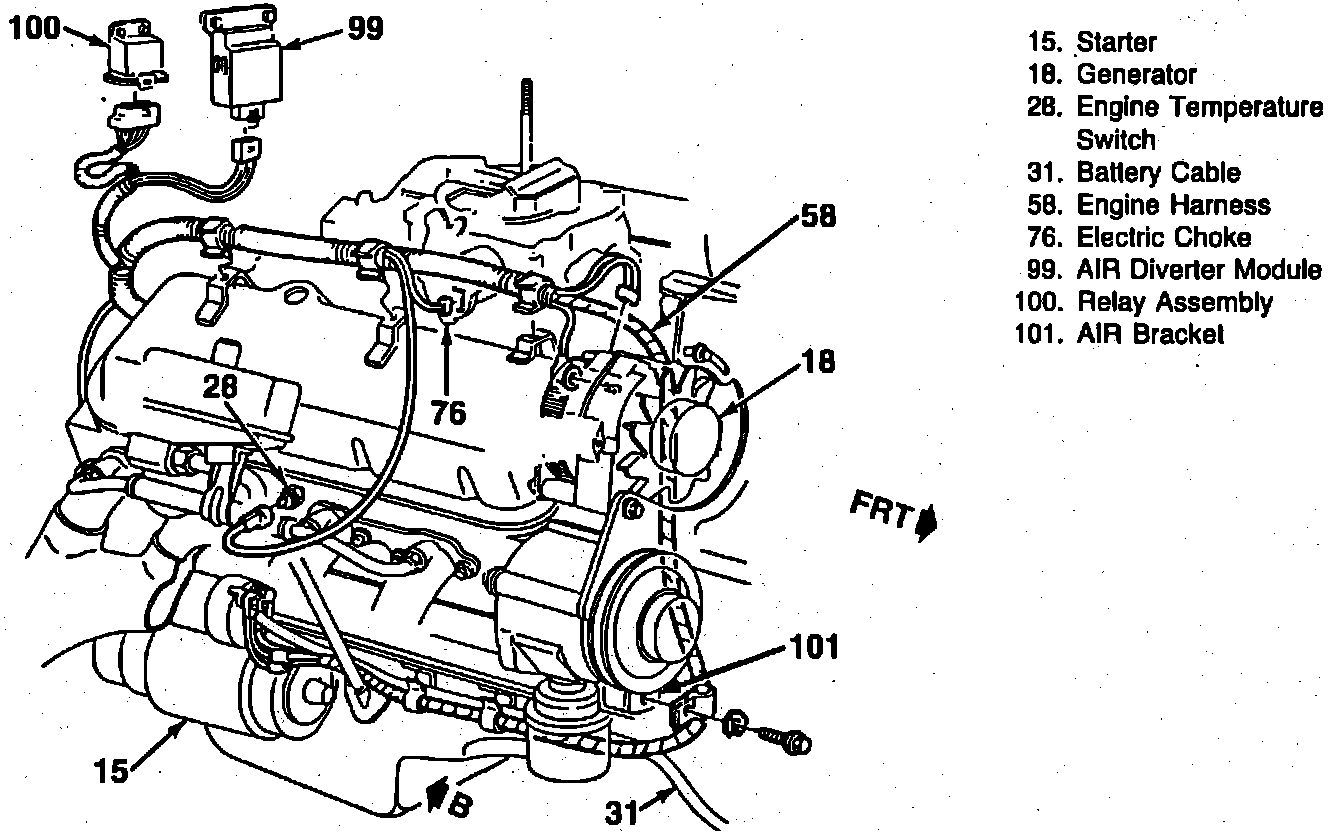

Engine Wiring (RH Side):
RH Side Of Engine Compartment
Applicable to: R & V Series w/V8-454/7.4L 4 Bbl. Engine
