Chevy Truck
>>
1988
>>
S10/T10 Blazer 2WD L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Relays
>>
Fuel Pump Relay

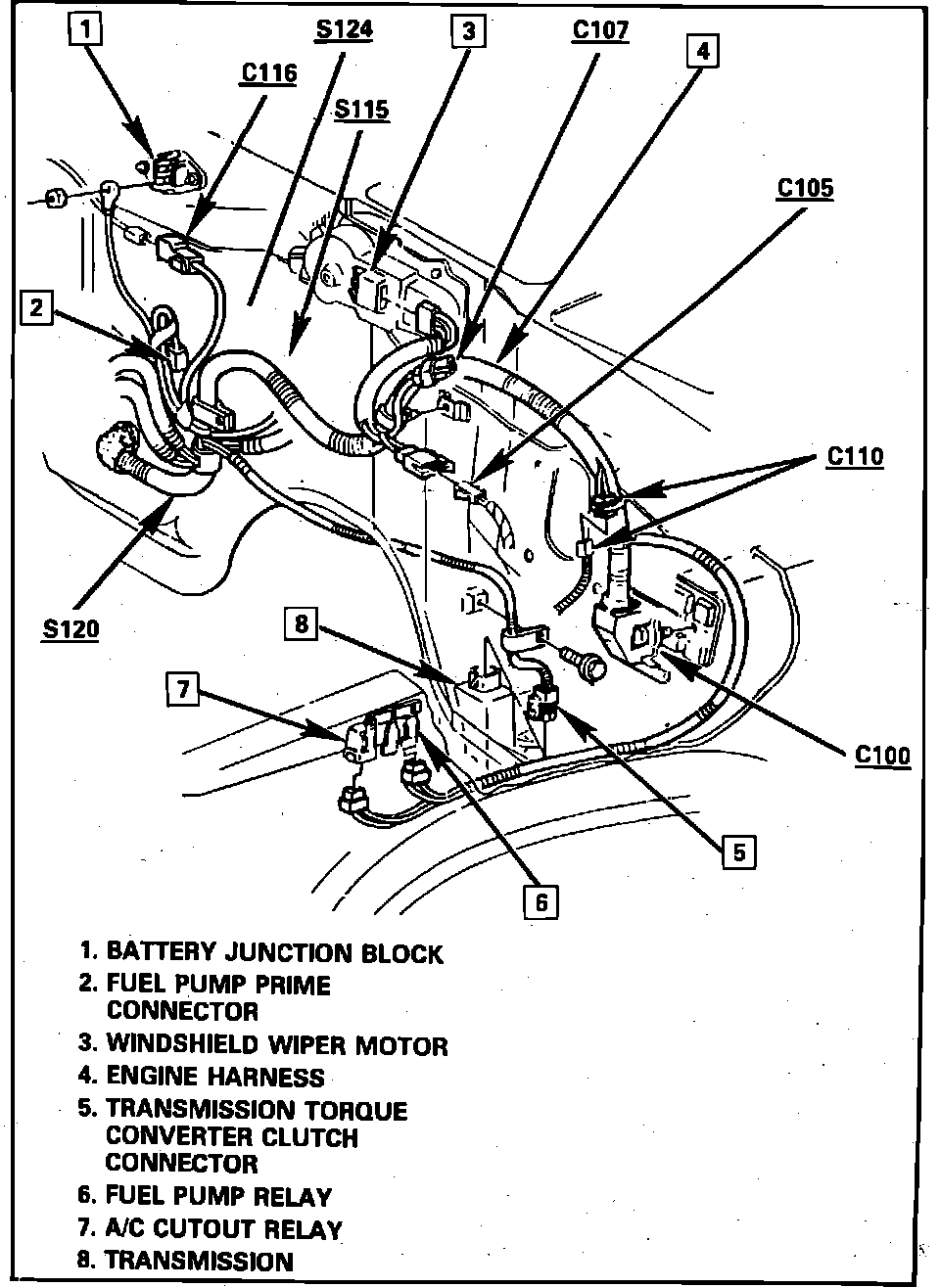

Fuel Pump Relay
LH Side Of Cowl.:
Lower LH Corner Of Engine Compartment
Applicable to: 4-151/2.5L Engine
