Air Inlet Actuator Replace

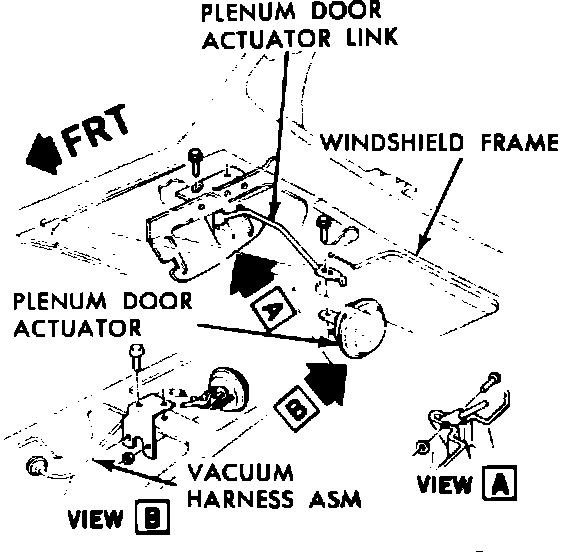

Fig. 2 Air inlet actuator assembly. S/T-10/15:

S/T-10/15

1. Disconnect battery ground cable.
2. Remove both windshield wiper arm and blade assemblies.
3. Remove cowl and plenum grille, then disconnect actuator linkage, Fig. 2.
4. Remove actuator.
5. Reverse procedure to install.
