Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1988
>>
S10/T10 Blazer 2WD V6-262 4.3L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Blower Motor
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
With Air Conditioning
>>
Blower Electrical System Diagnosis
Blower Electrical System Diagnosis

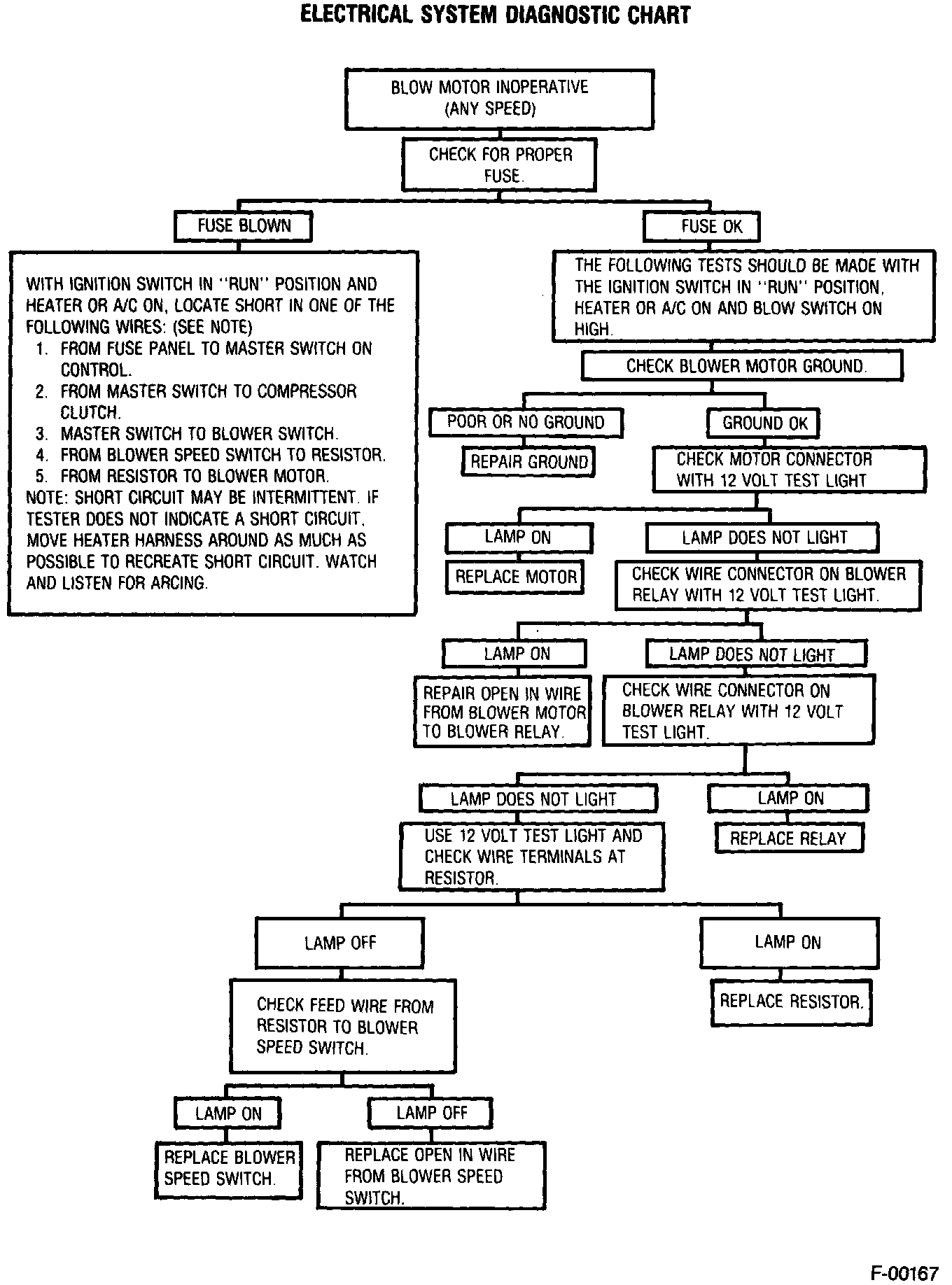

Electrical System Diagnostic Chart Part 1 Of 2:

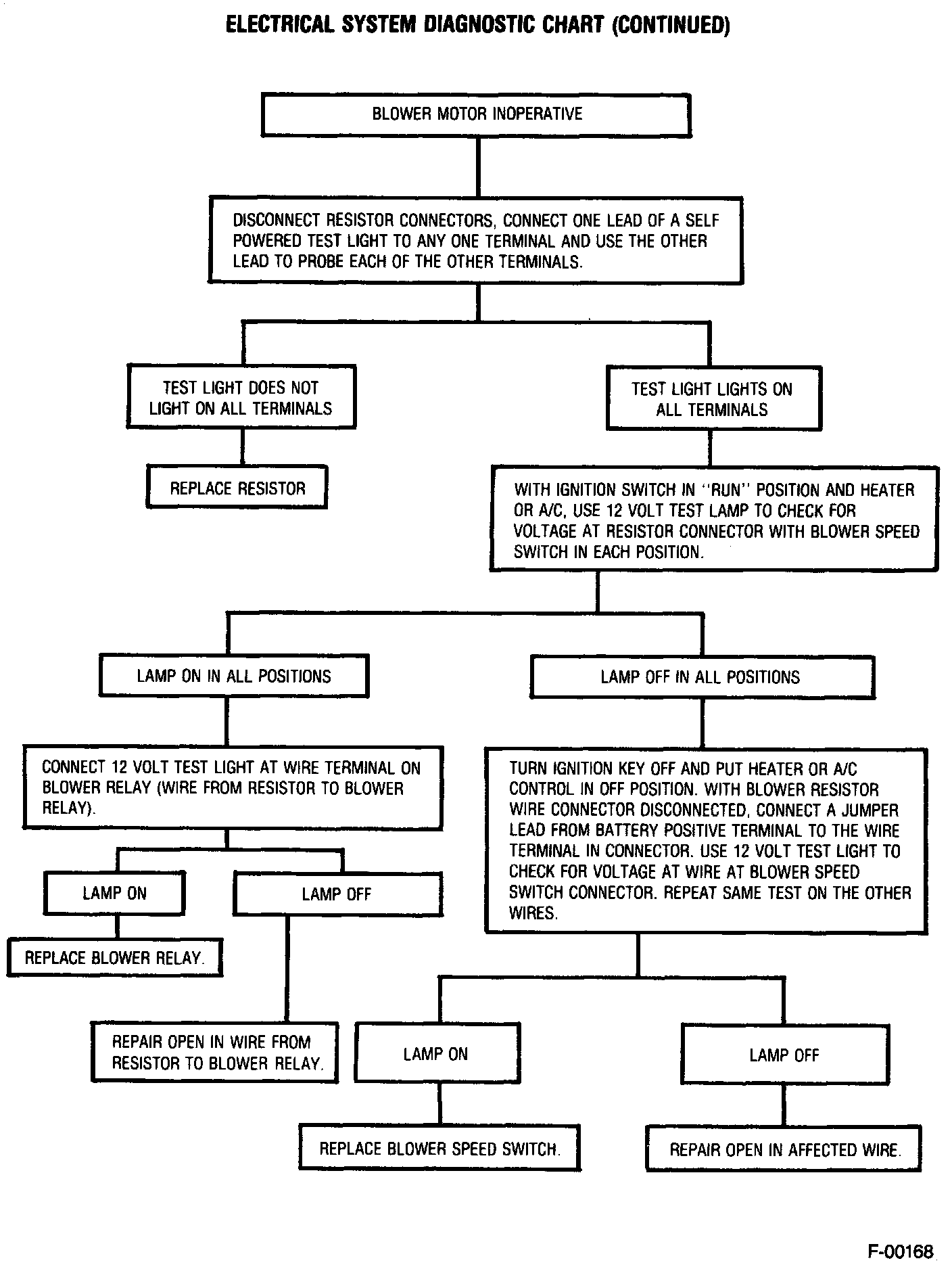

Electrical System Diagnostic Chart Part 2 Of 2:
