S10/T10 Blazer 2WD V6-262 4.3L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Exploded Views
>>
Upper Components
Upper Components

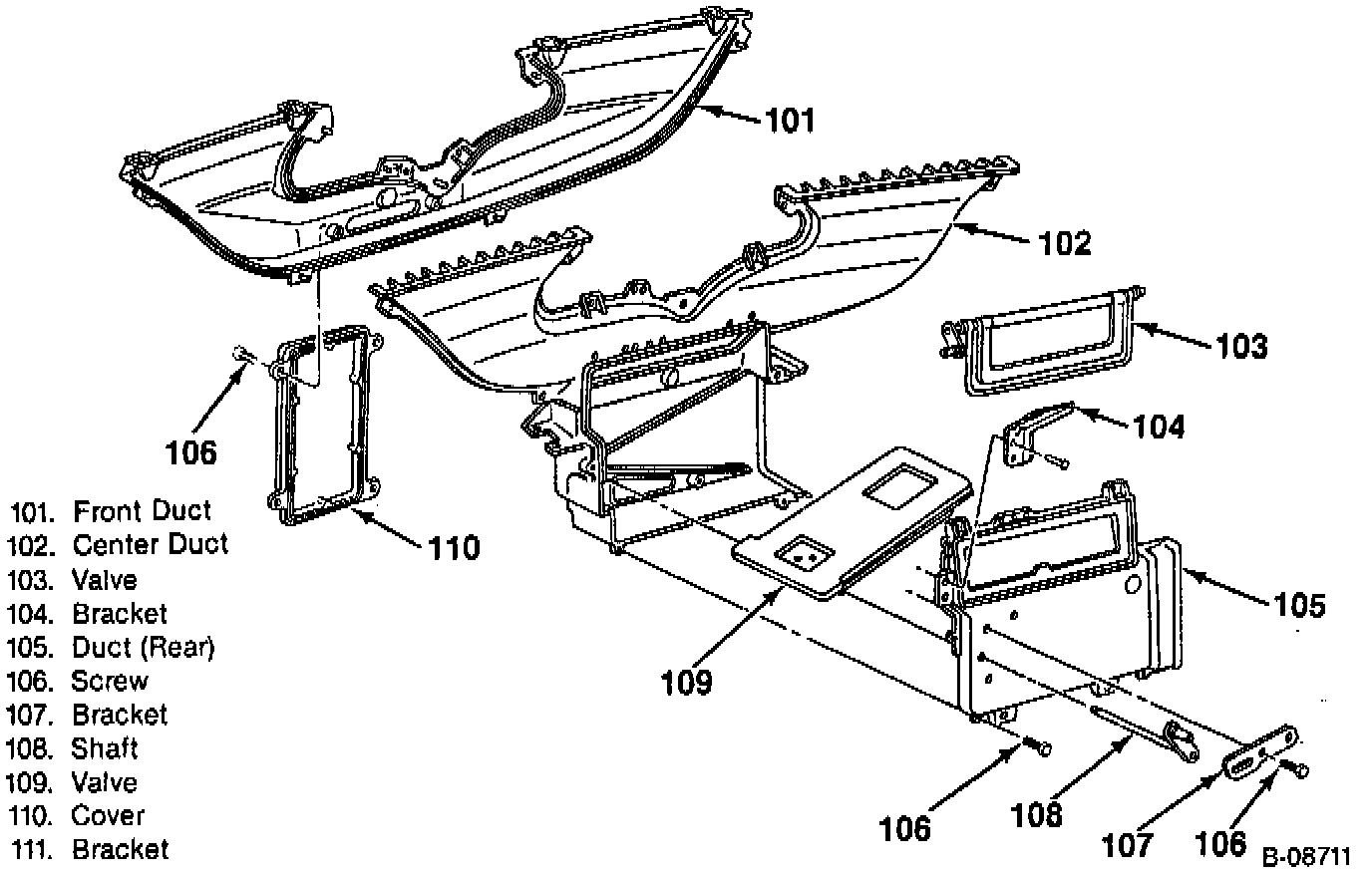

Air Distribution Assembly Component View:
