Engine Specifications

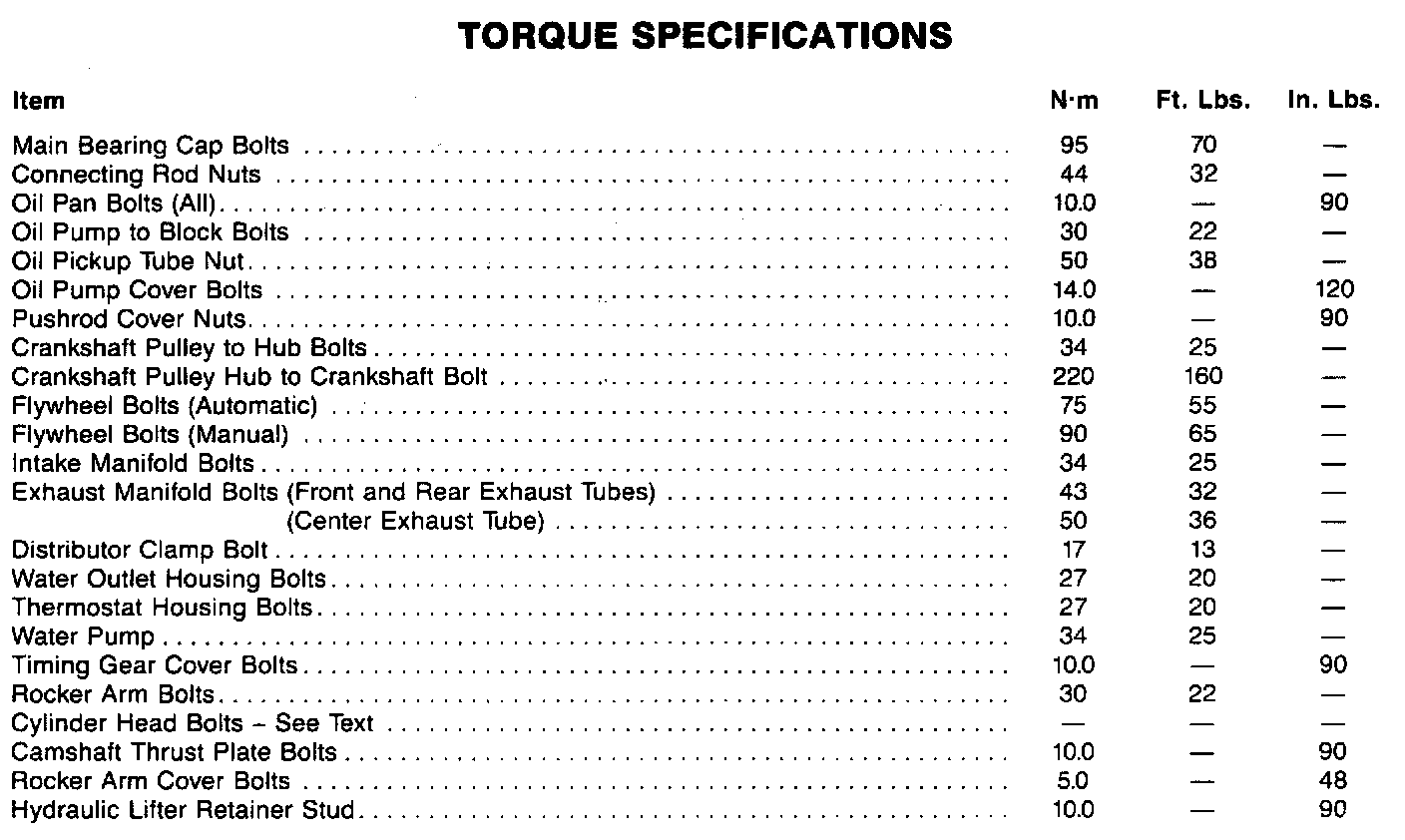

Torque Specifications:

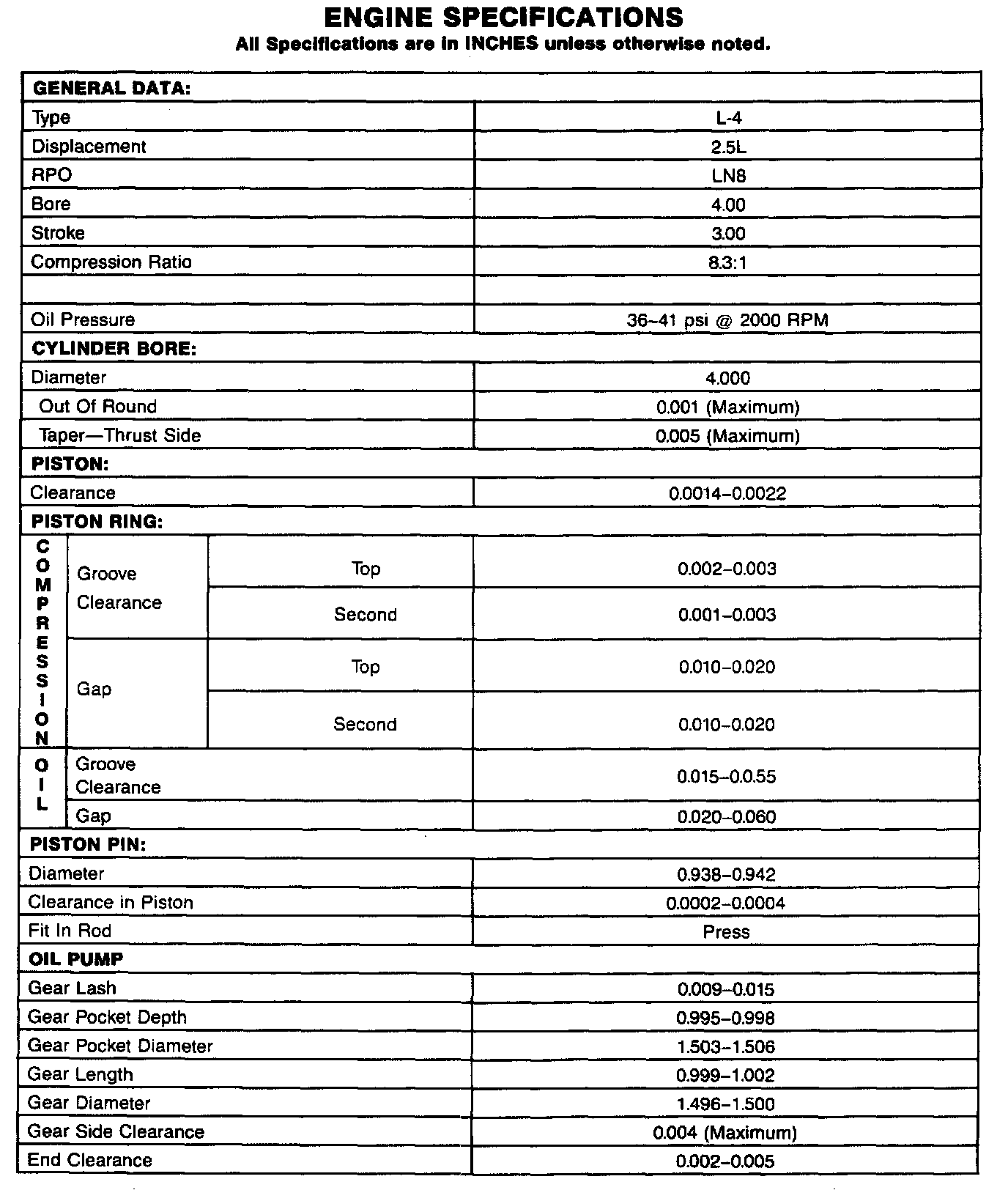

Engine Specifications:

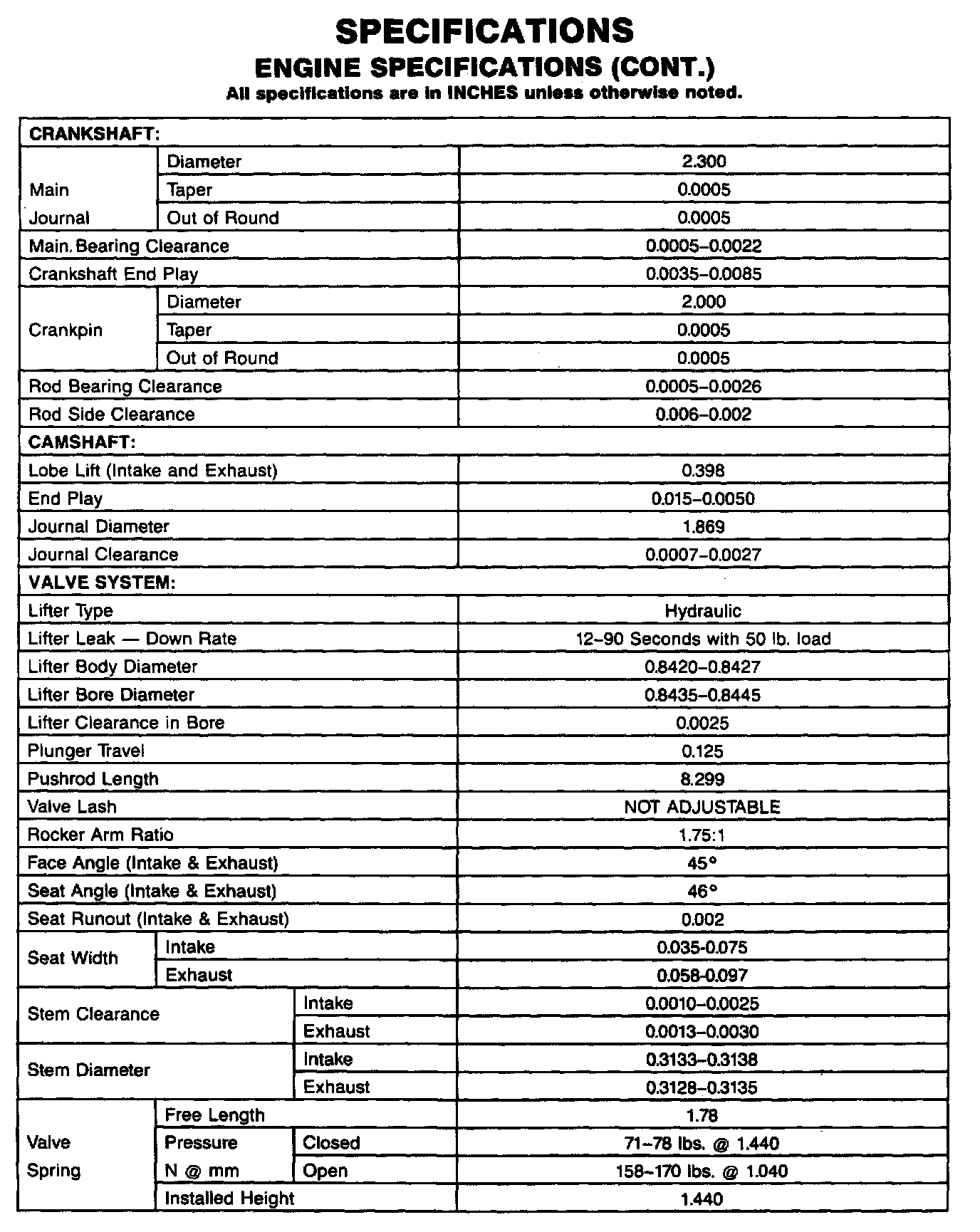

Engine Specifications:





Cylinder Head Torque Sequence:
