Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1988
>>
S10/T10 Blazer 4WD V6-173 2.8L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Compressor HVAC
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>

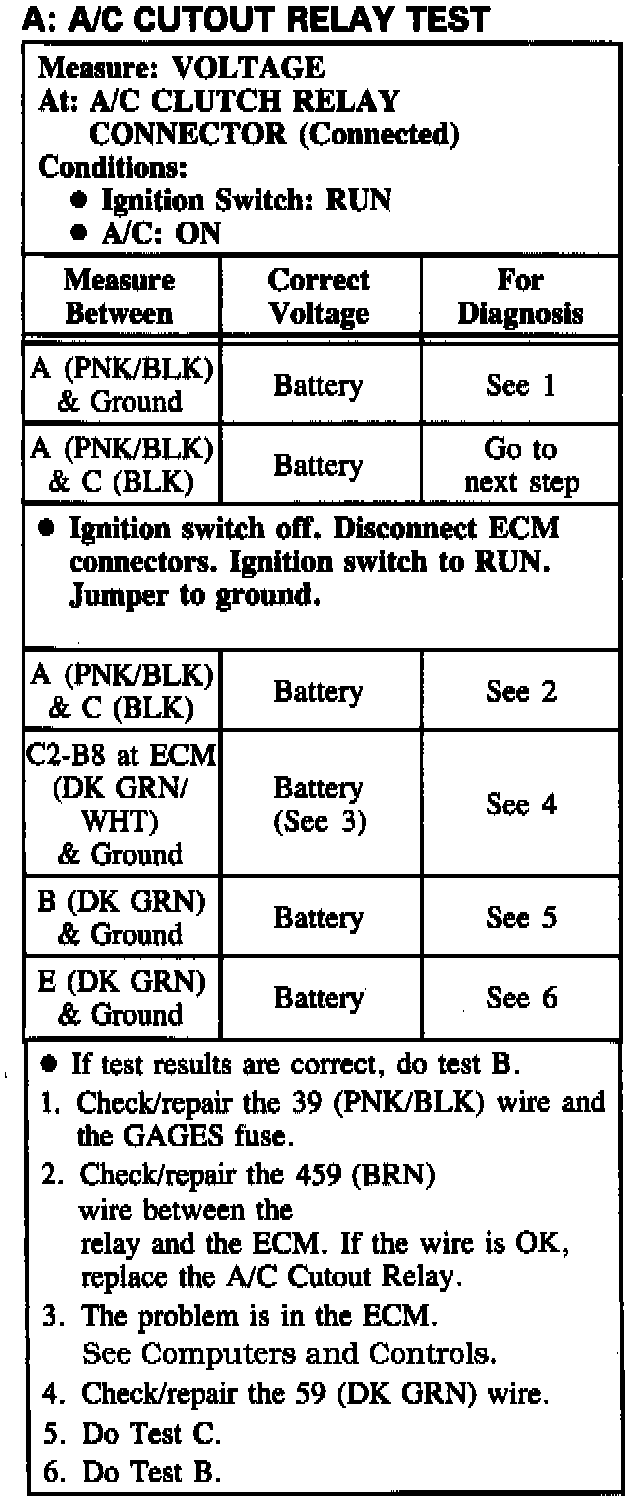

Test A: A/C Cutout Relay Test
Test A: A/C Cutout Relay Test
Test A A/C Cutout Relay Test:
