With Trailer Tow Package
With Trailer Tow Package

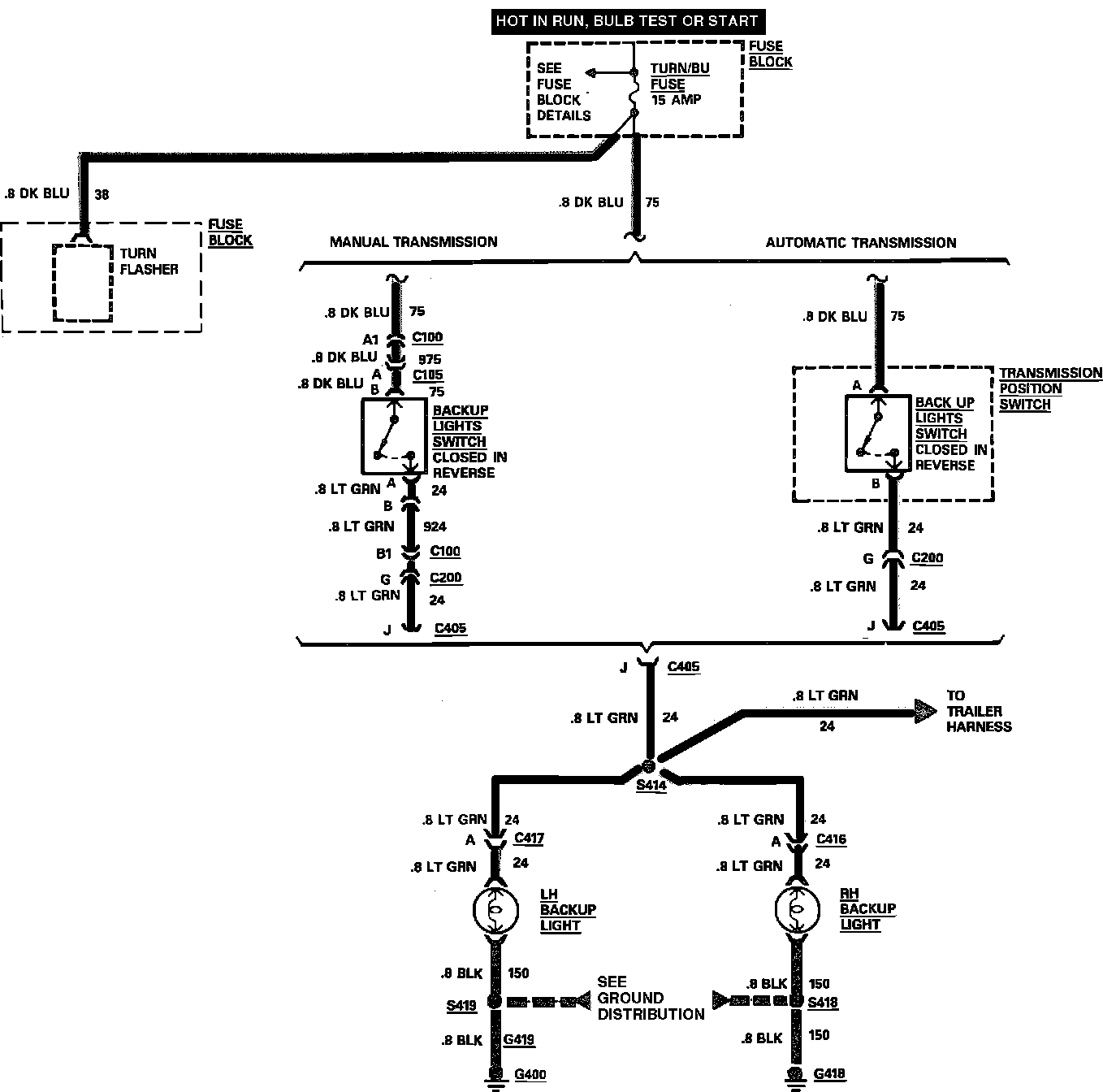

Back-Up Lights Wiring Circuit (W/Trailer Tow Package):
