Backup Lamp
>>
Without Trailer Tow Package
Without Trailer Tow Package

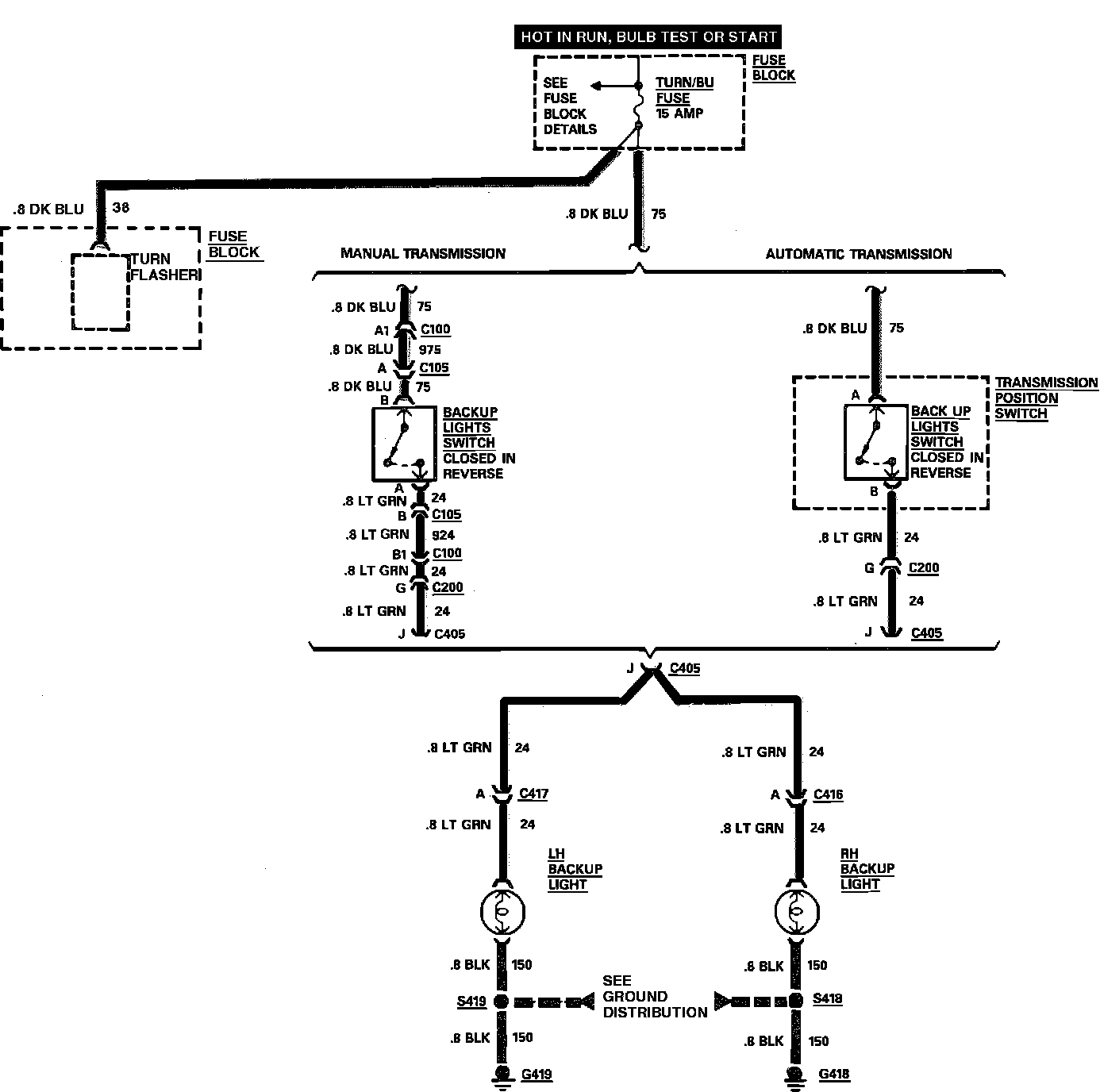

Back-Up Lights Wiring Circuit (Less Trailer Tow Package):
