Ground Strap Locations
Ground Strap Locations

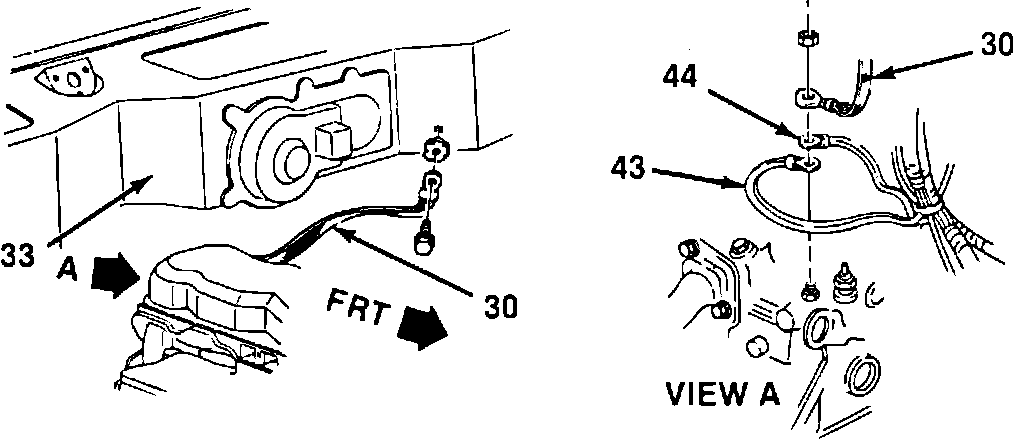

Engine Wire Routing:
30
=
ENGINE GROUND STRAPS.
33
=
COWL.
43
=
OXYGEN SENSOR GROUND.
44
=
SYSTEM GROUND.
55
=
BRAKE PIPES.
