Oil Pan: Service and Repair

Oil Pan Installation:

REMOVE OR DISCONNECT
1. Engine from the vehicle. Refer to Service and Repair. Service and Repair
2. Oil pan bolts and studs.
3. Oil pan.
4. Gasket

CLEAN
^ Sealing surfaces on the engine and oil pan.

CAUTION Before installing the oil pan, check that the seal surfaces on the pan, cylinder case, and front cover are clean and free of oil. Make sure that all RTV is removed from blind attaching holes.

INSTALL OR CONNECT
1. Gasket.

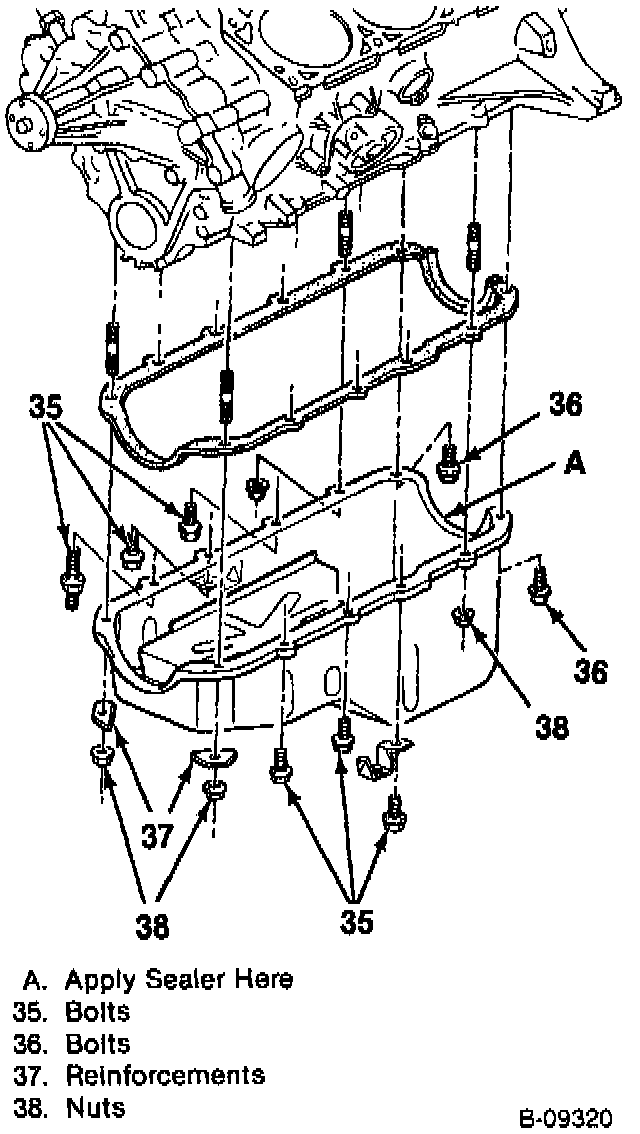

^ Apply sealer (GM Part Nb 1052914 or equivalent) to the area shown.
2. Oil pan to the cylinder block.
3. Reinforcement (37), nuts, bolts, and studs.
Tighten
^ Bolts (36) to 25 Nm (18 ft. lbs.).
^ Bolts and studs (35) and nuts (38) 10 Nm (7 ft. lbs.).
4. Engine. Refer to Service and Repair. Service and Repair
