Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Instrument Panel Lamps
>>
Gauges Cluster
>>
Lights & Indicators
Lights & Indicators

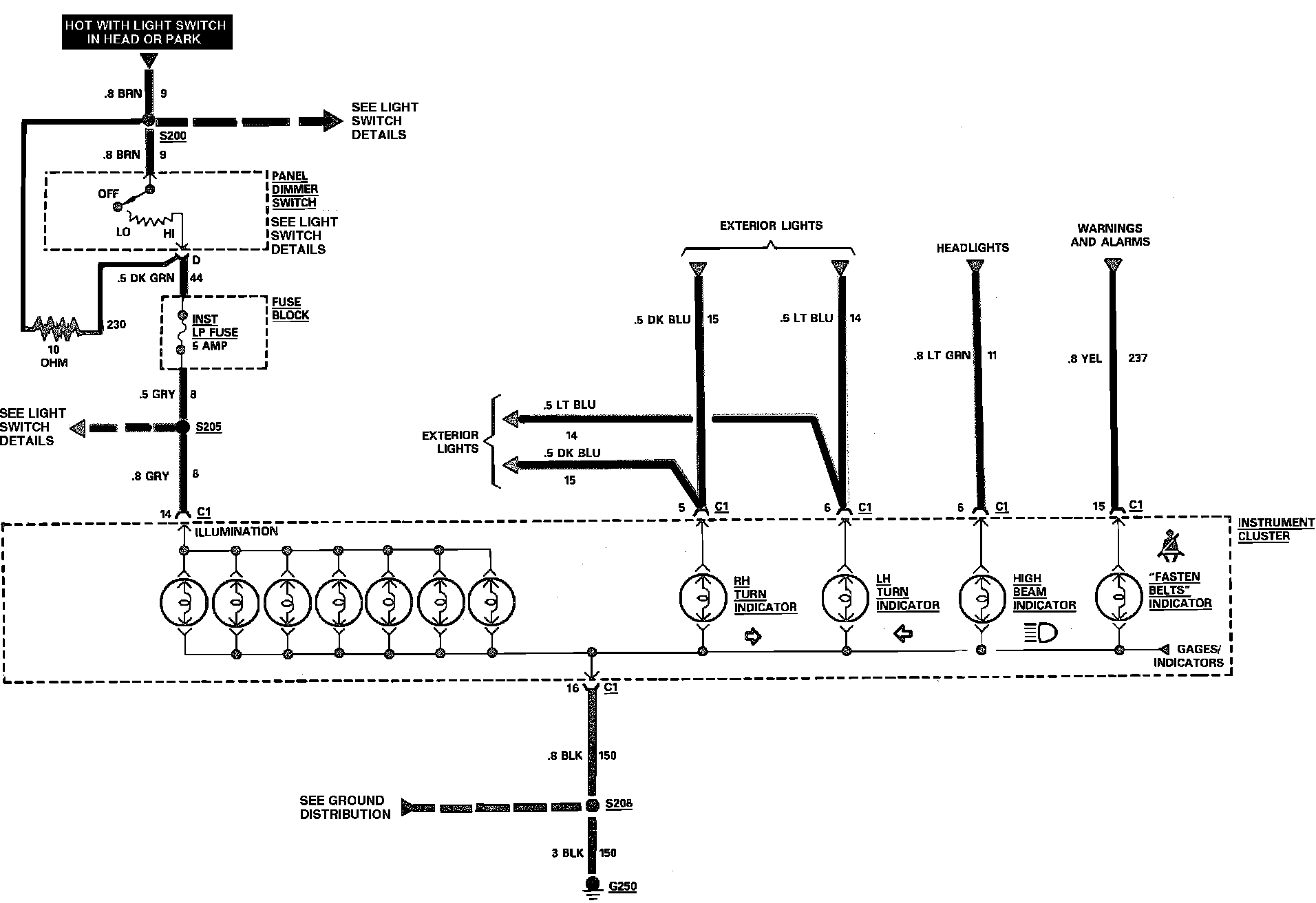

Lights & Indicators (Gauges Cluster):
