Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Instrument Panel
>>
With Gauges Cluster
With Gauges Cluster

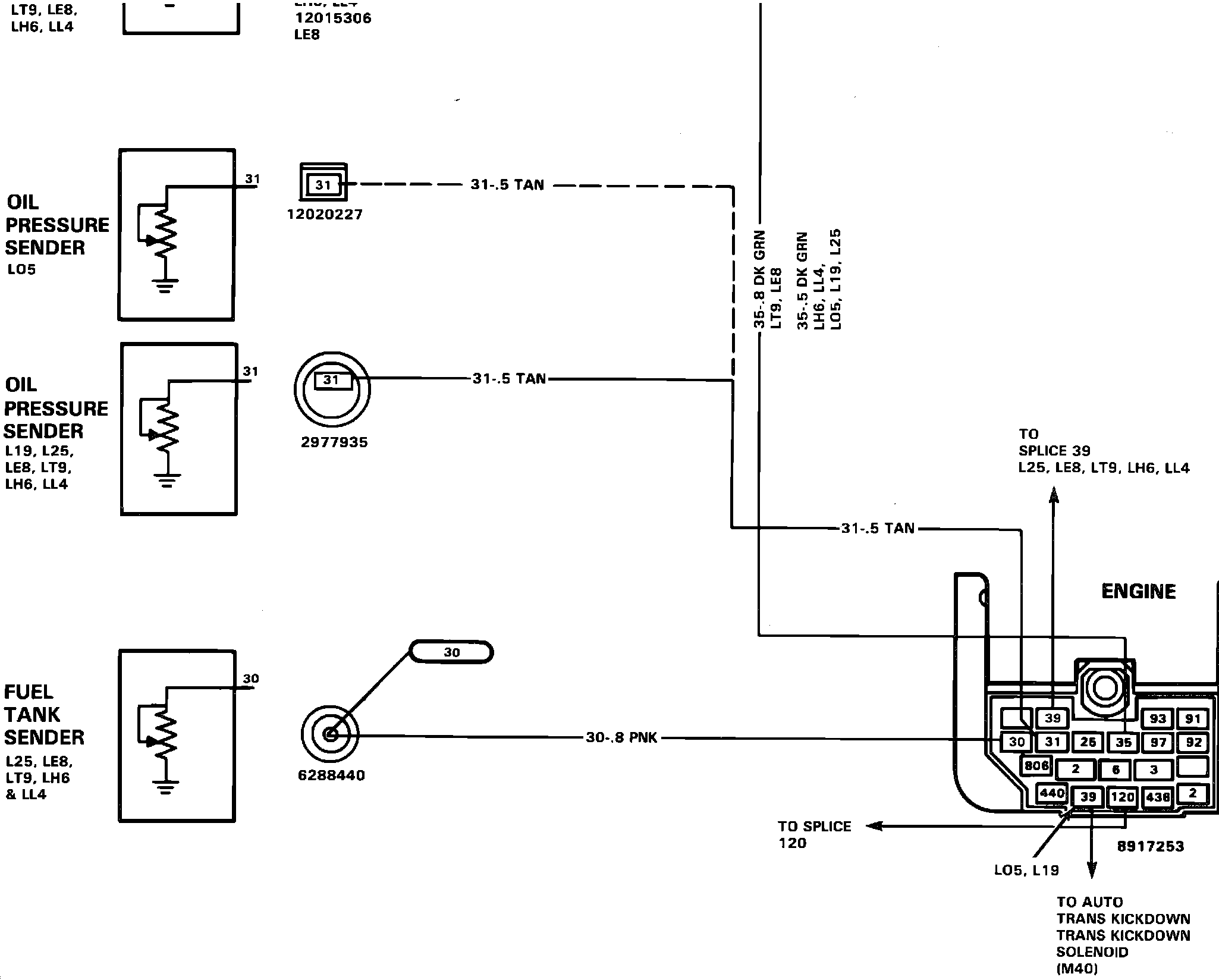

� y:� 9X� Gauge Cluster (Part 1 Of 2):

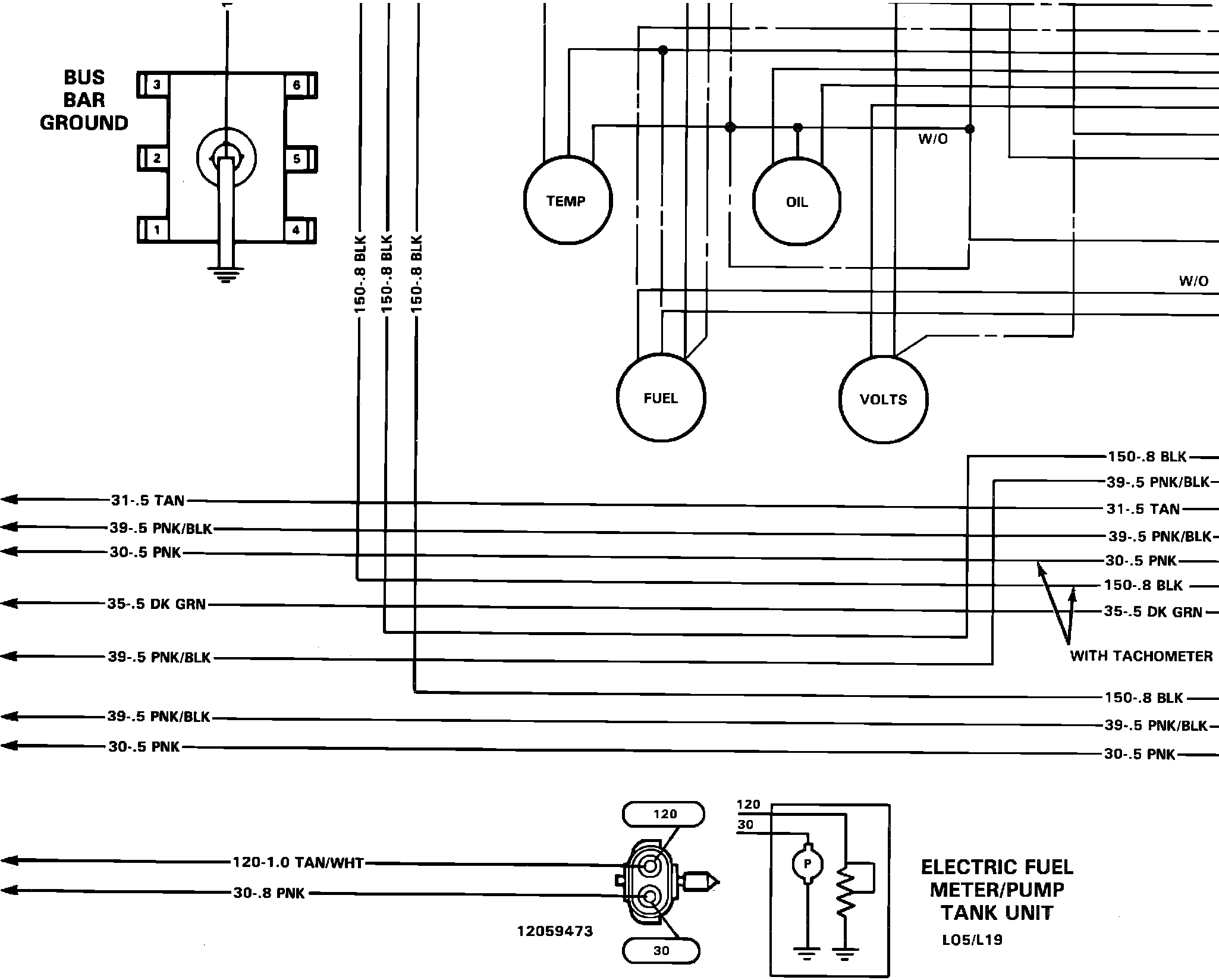

d�� ��� }�� Gauge Cluster (Part 2 Of 2):
