New Process Model 208 & 241

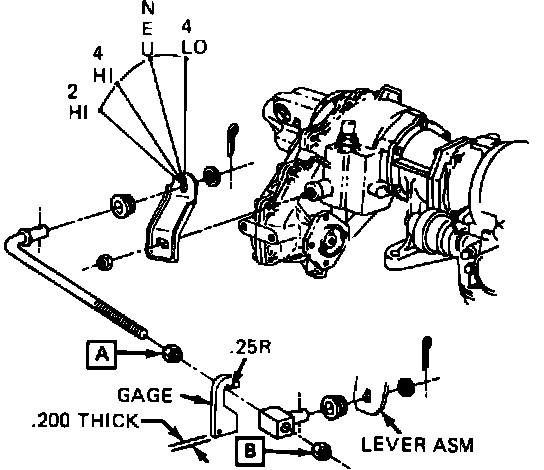

Fig. 2 Transfer case shift linkage:

1. Position transfer case shift lever in 4 Hi detent.
2. Push lower shifter lever forward to 4 Hi stop, then install rod swivel into shift lever hole.
3. Install .20 inch gage behind swivel as shown, Fig. 2.
4. With shifter against 4 Hi stop, tighten rod nut (A) until it contacts gage.
5. Remove gage, then push swivel rearward against nut (A) and tighten nut (B).
