Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1988
>>
V 10 P/U 4WD V8-454 7.4L
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Pulse
Pulse

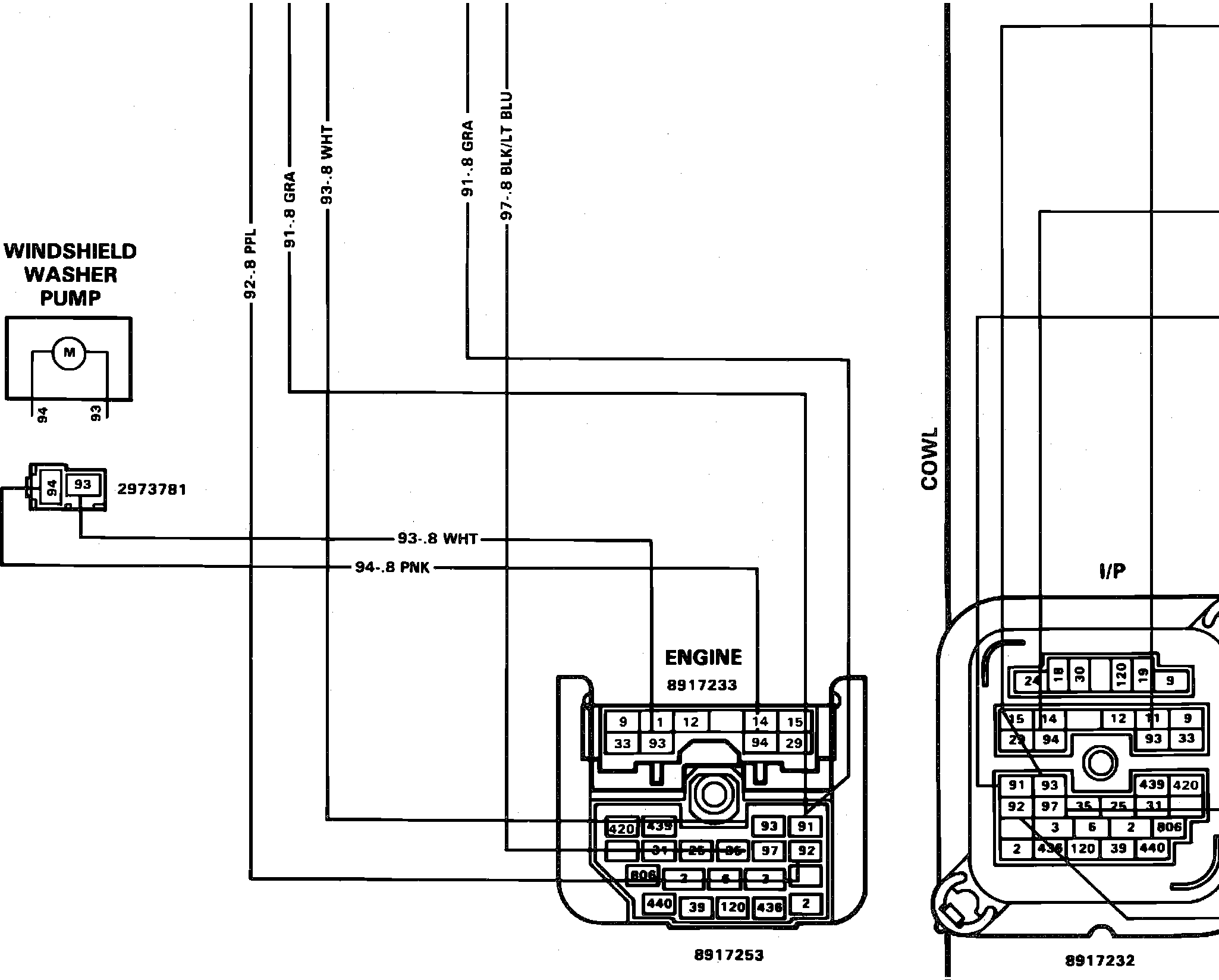

�m�GP��G���GWiper/Washer Wiring Circuit (W/Pulse Wiper):
