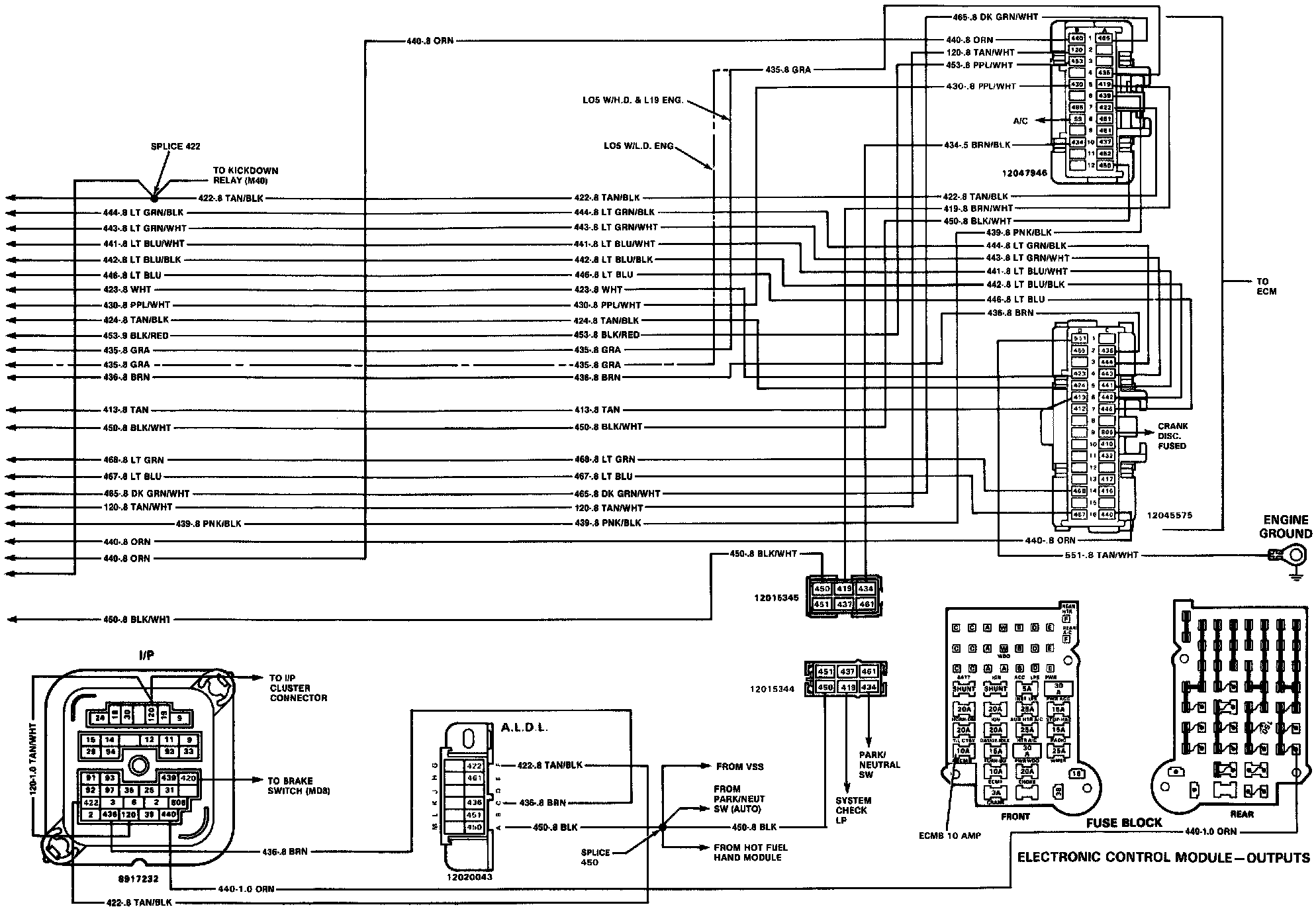

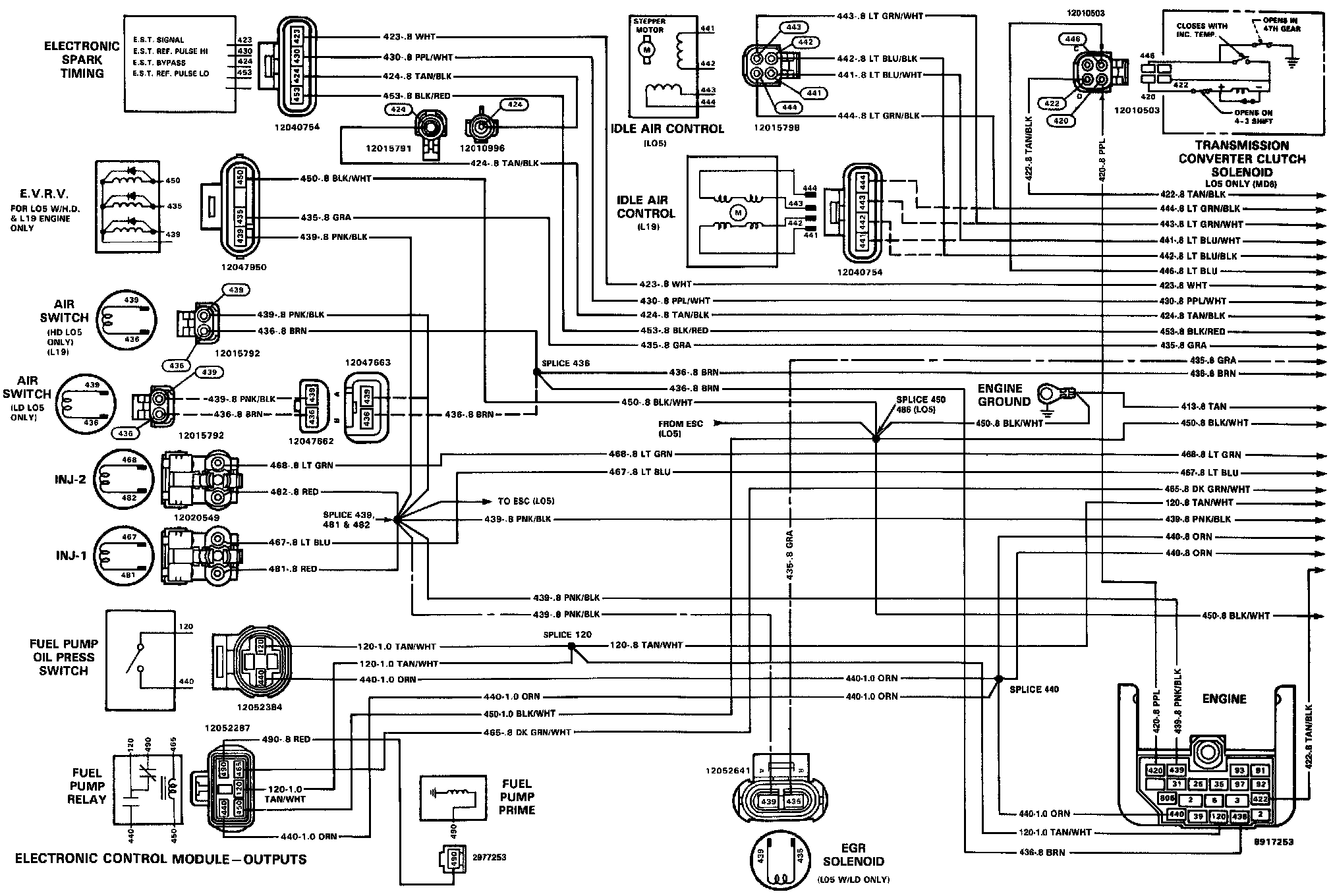

Home >> Chevy Truck >> 1988 >> V 20 P/U 4WD V8-454 7.4L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Electronic/Powertrain Control Module (ECM/PCM) >> ECM/PCM Inputs/Outputs >> ECM/PCM Outputs
