Home
>>
Chevy Truck
>>
1989
>>
Astro Van M L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Dome Lamp
>>
W/Lamp Group
W/Lamp Group

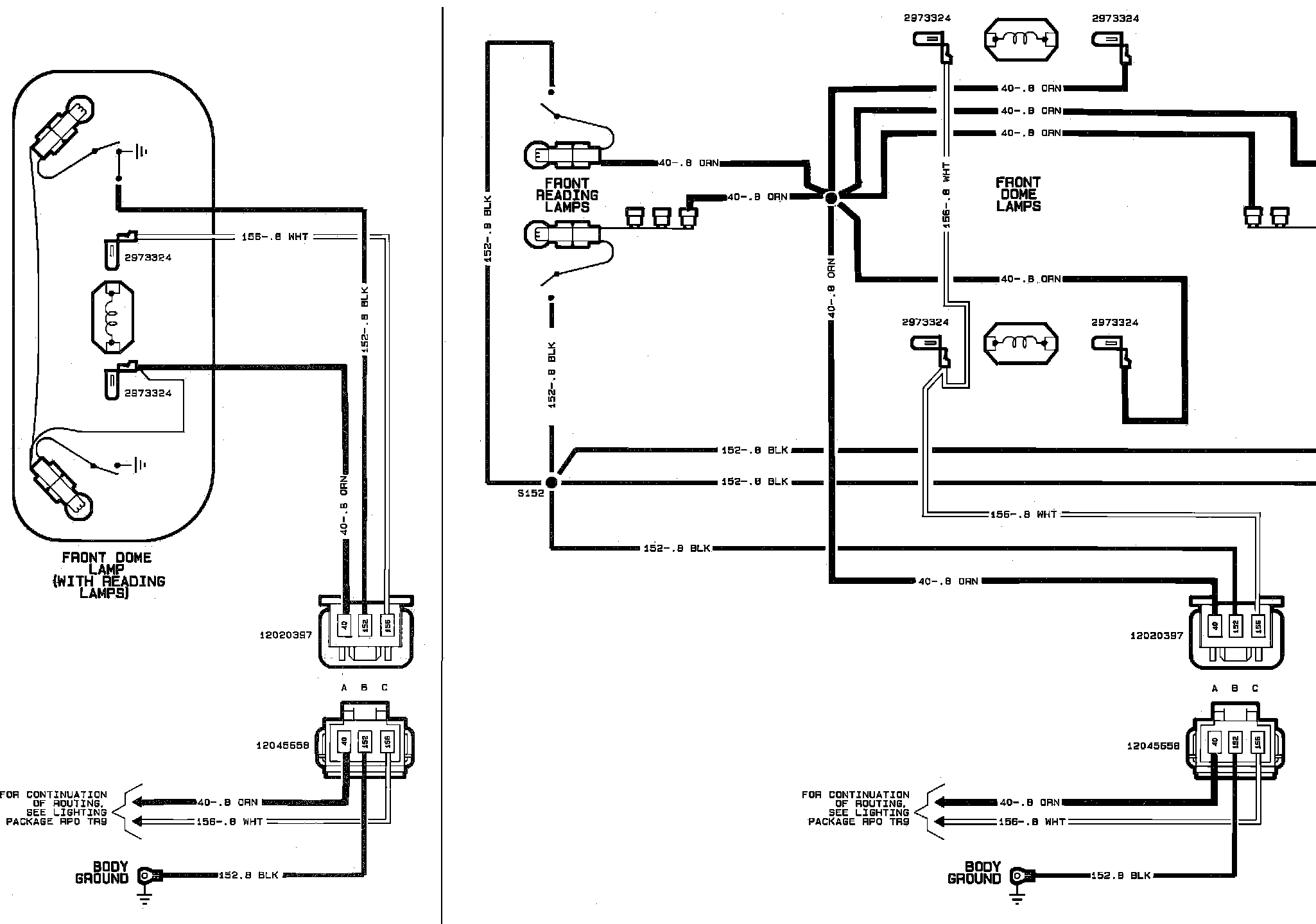

b�~CDome Lamps W/ Lamp Group Wiring Circuit:
