Instrument Panel, Gauges and Warning Indicators
>>
Cigarette Lighter
Cigarette Lighter

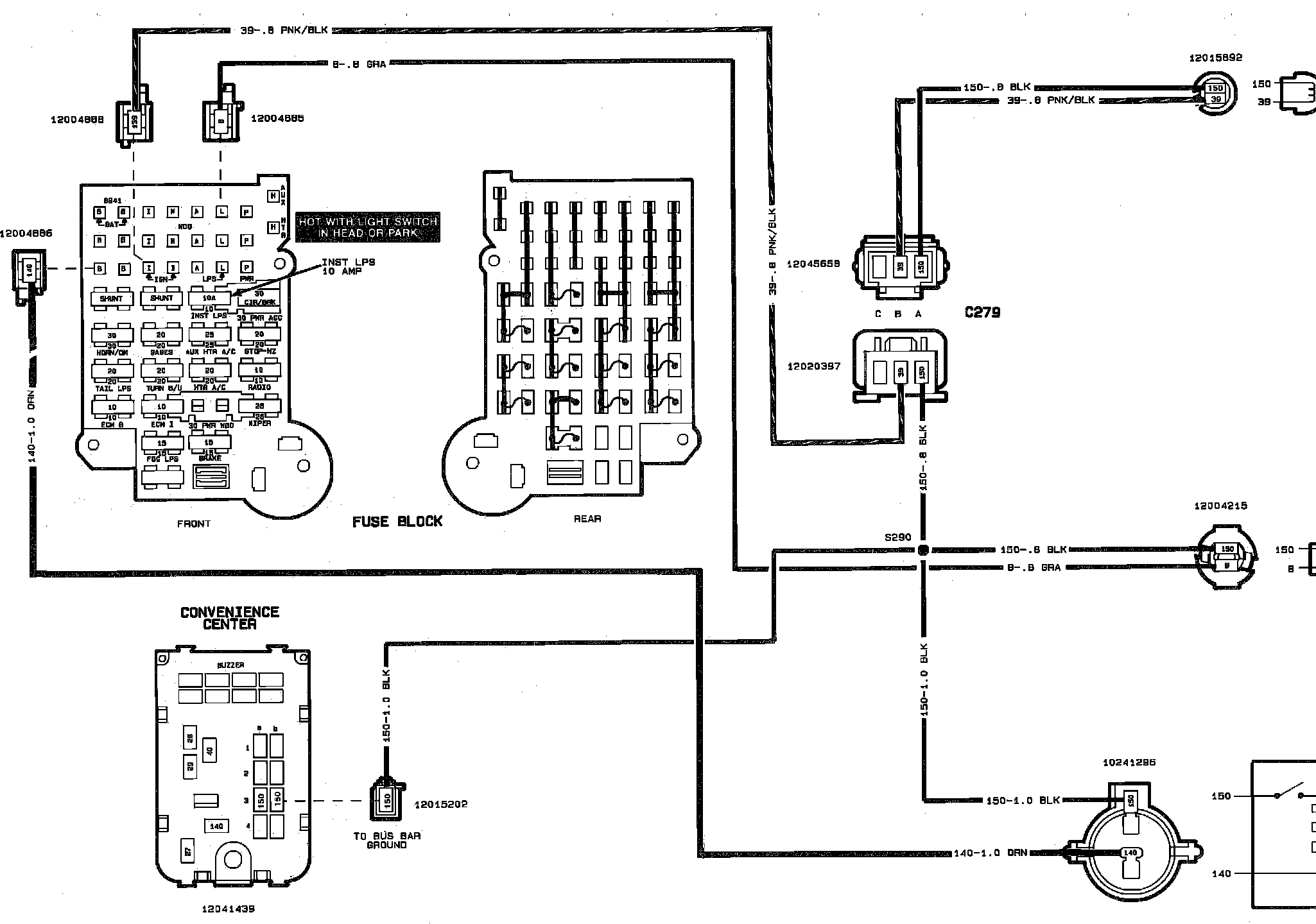

�C�@Cigar Lighter Wiring Circuit:
