Home >> Chevy Truck >> 1989 >> Astro Van M L4-151 2.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Parking Lamp

Parking Lamp

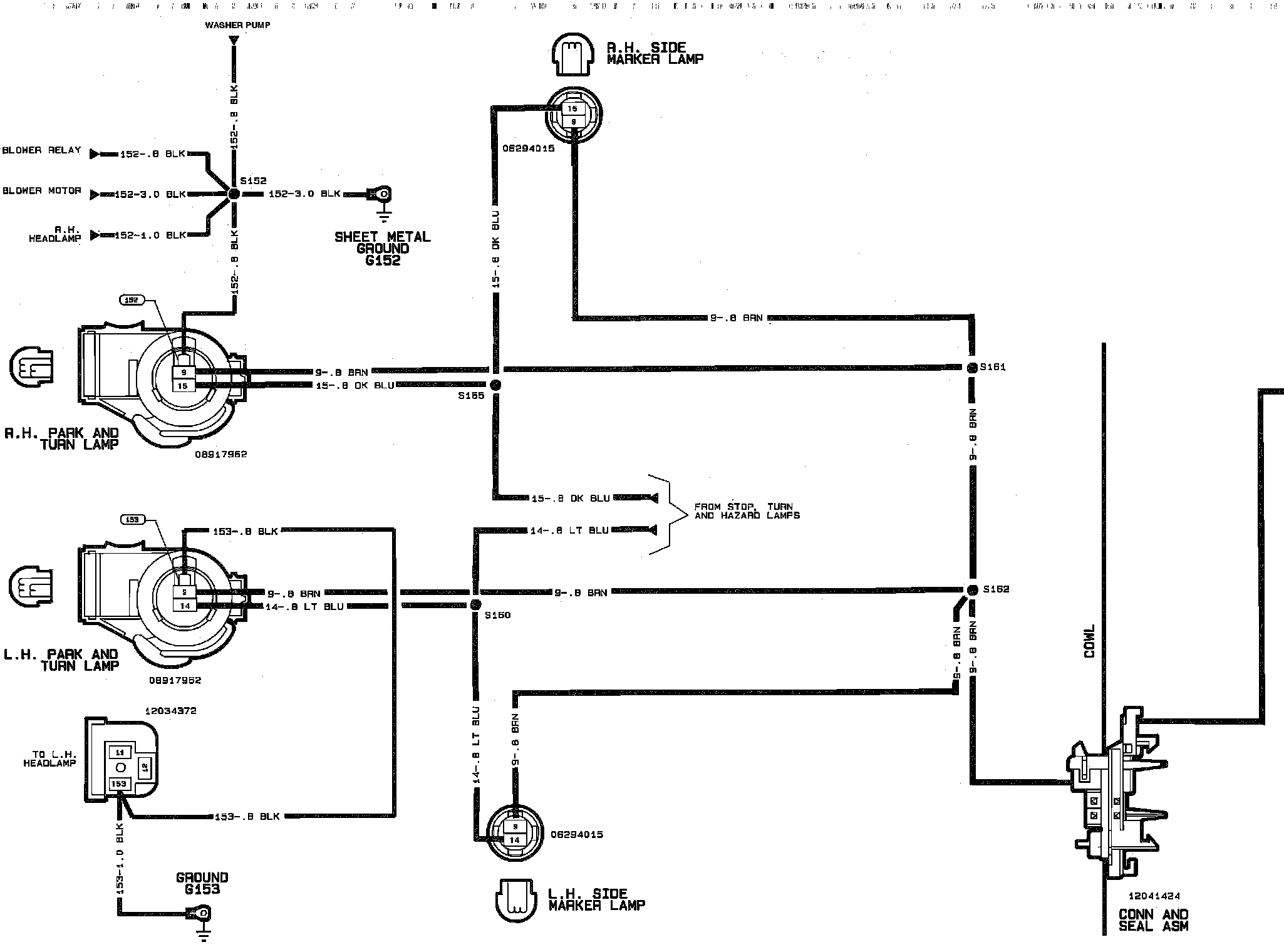

(ǾD��DLicense Plate, Marker & Parking Lamps Wiring Circuit:
