Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1989
>>
Astro Van M L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Fuel Injectors
Fuel Injectors

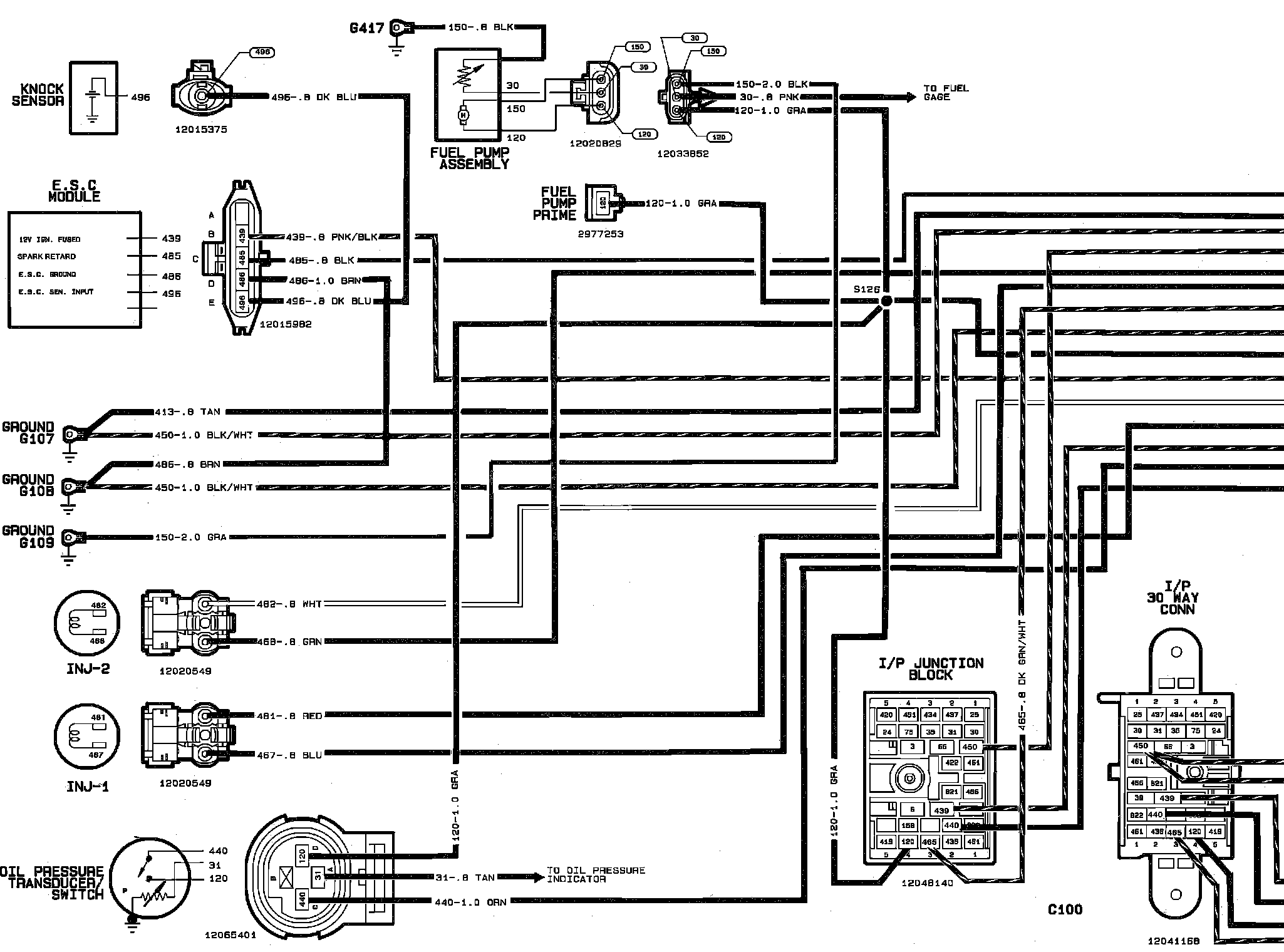

y��$H&�$Fuel Pump & Injector Control Wiring Circuit:
