Astro Van M L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
System Diagram
>>
Starting System
Starting System

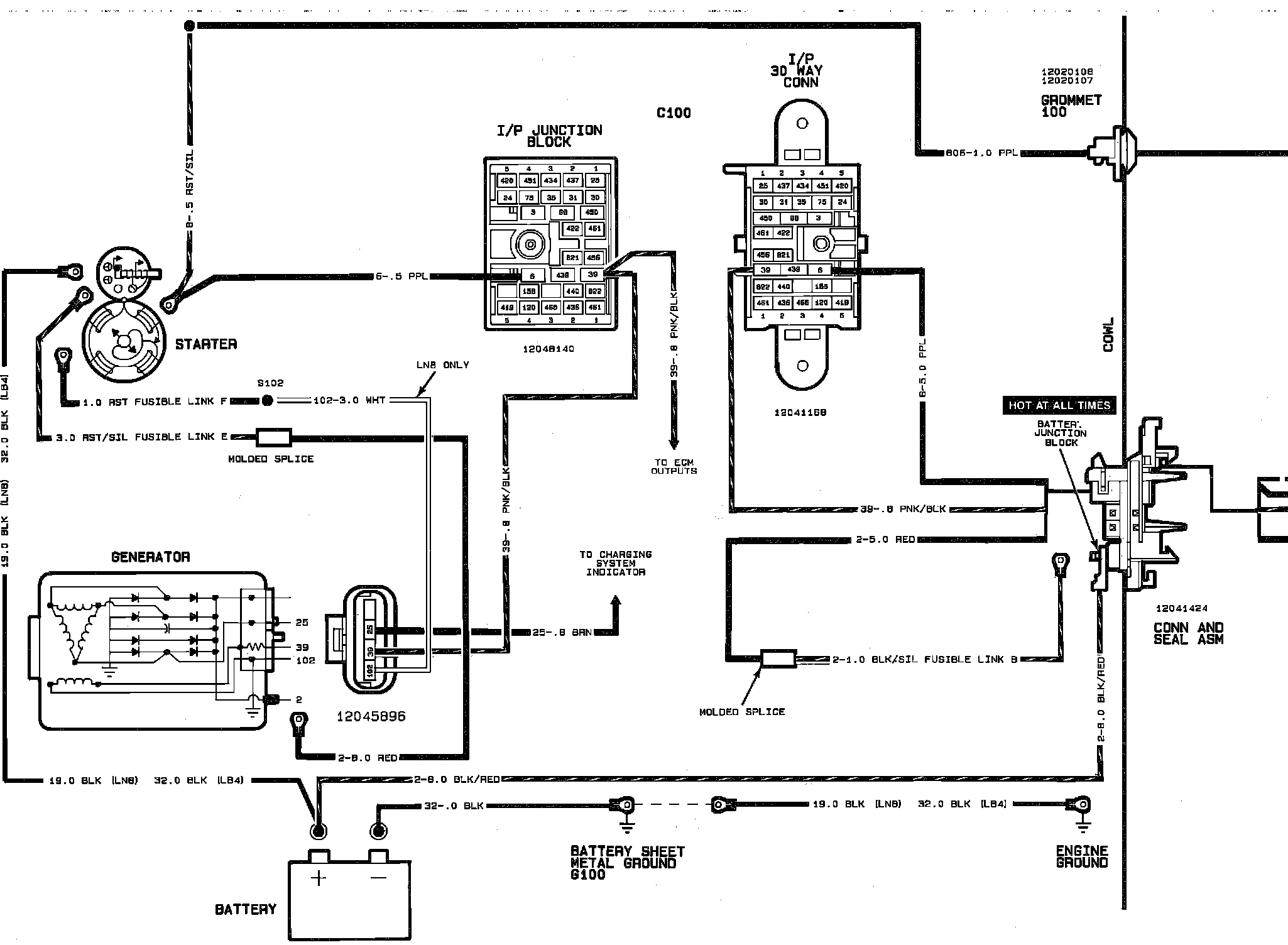

M�`3��`3Charging and Starting System Wiring Circuit:
