Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1989
>>
Astro Van M L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
Pulse
Pulse

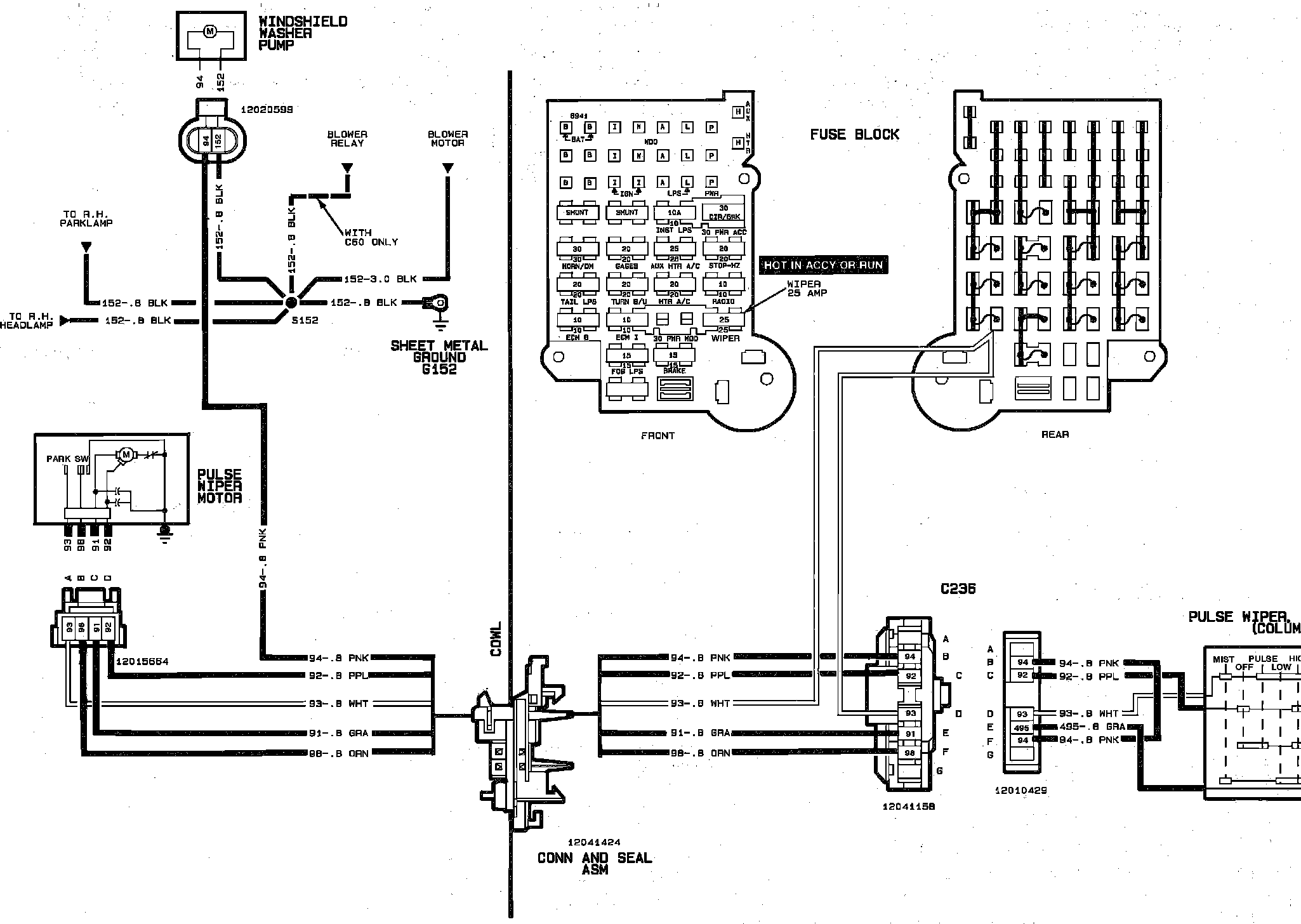

���GWindshield Wipers & Washer W/ Pulse Wiring Circuit:
