Home >> Chevy Truck >> 1989 >> Astro Van M L4-151 2.5L >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> With Air Conditioning >> Front

Front

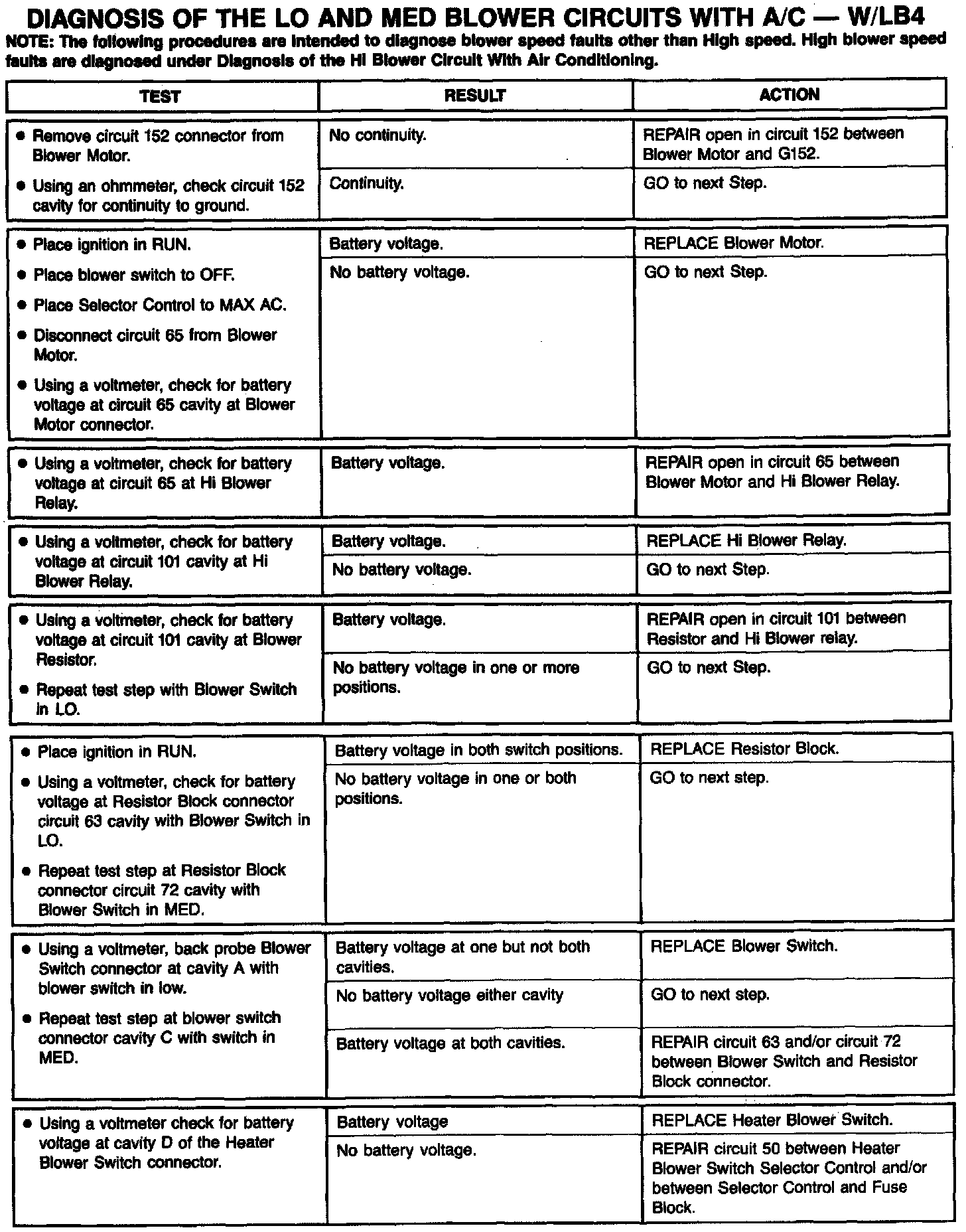

Diagnosis-Lo And Med Blower Circuits W/ LB4:

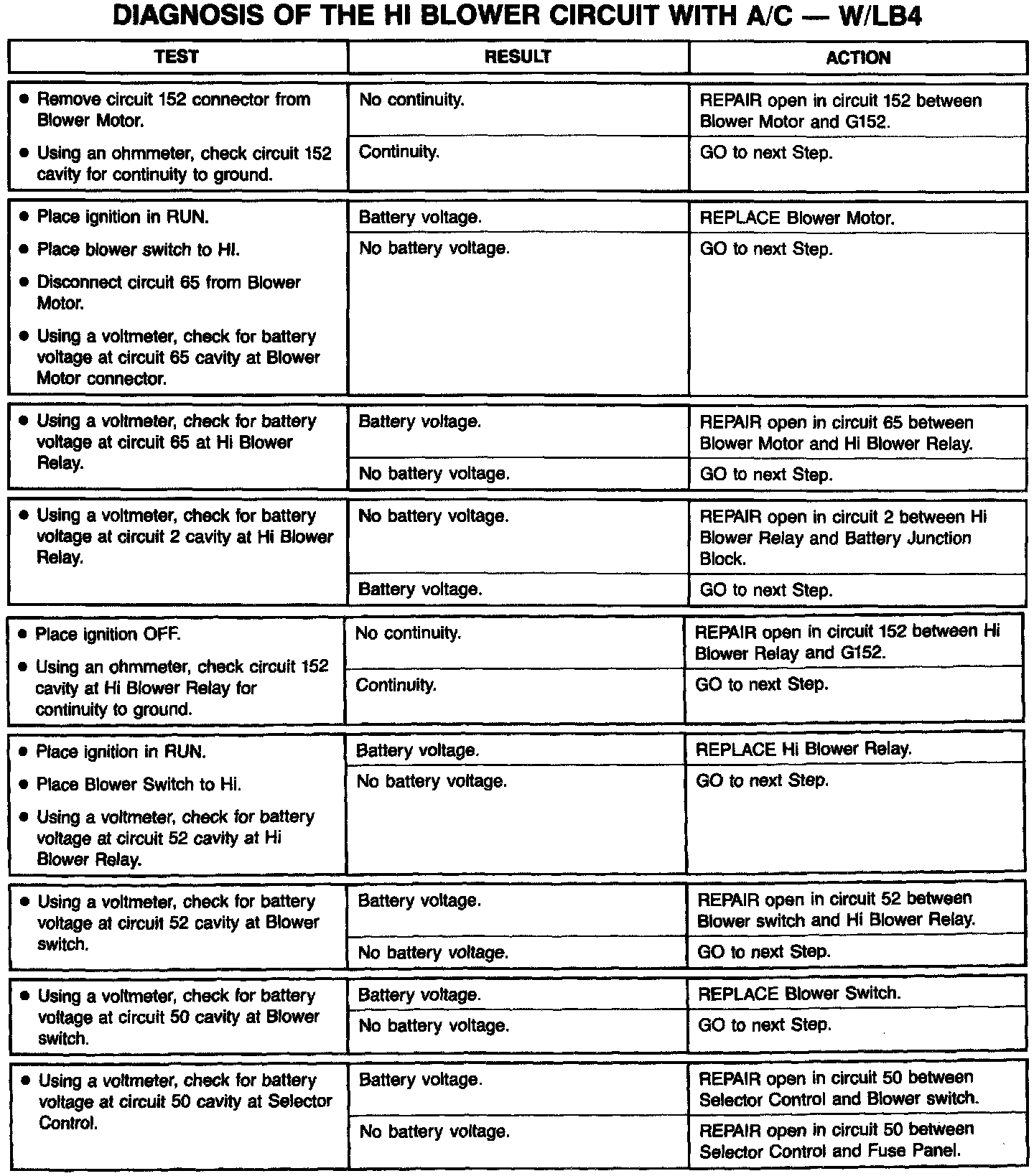

Diagnosis Hi Blower Circuit W/ LB4:
