Chevy Truck
>>
1989
>>
Astro Van M L4-151 2.5L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
With Air Conditioning
>>
Front
Front

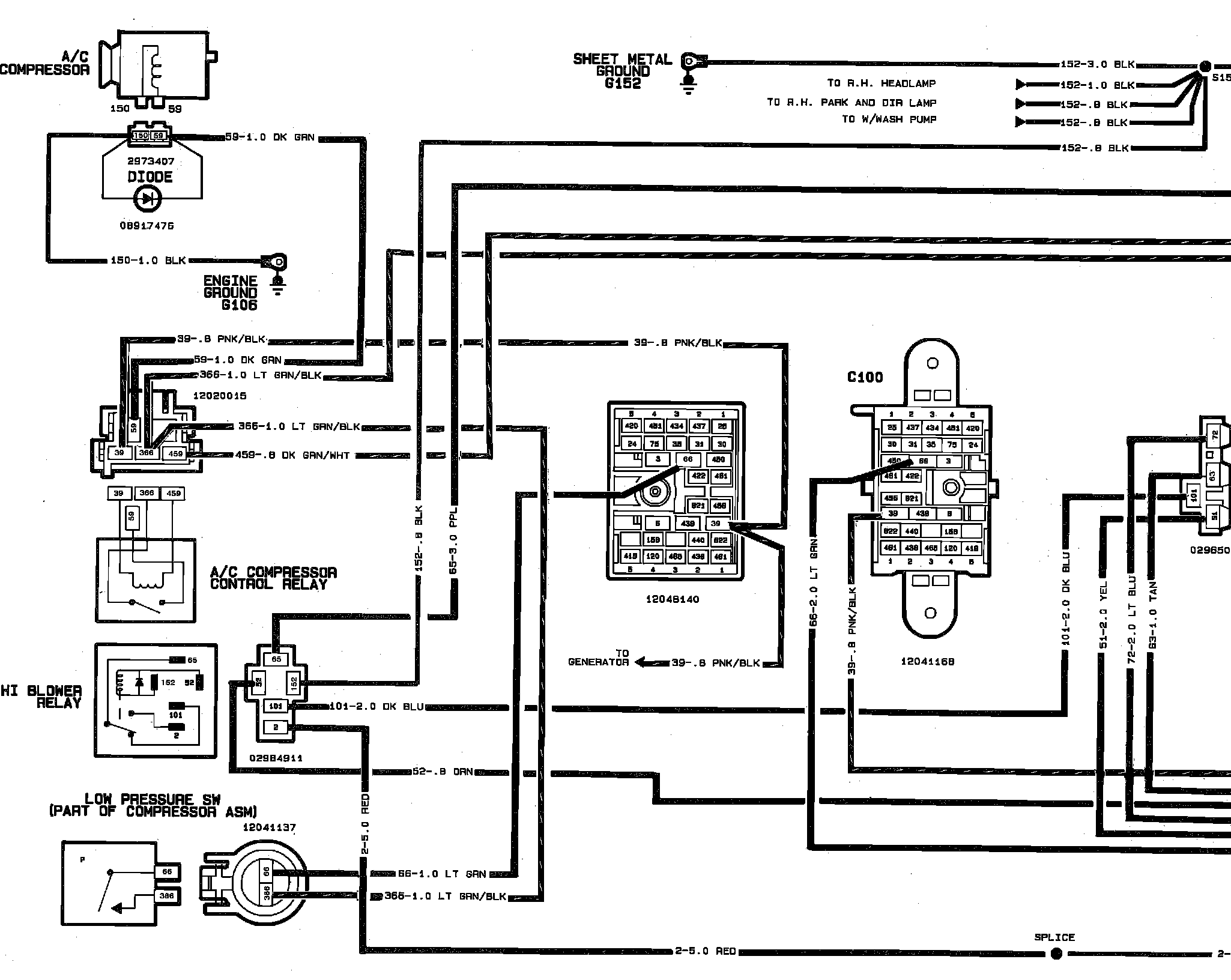

ehj7ֹj7Air Conditioning Wiring Circuit:
