Rear

Figure 40-Rear Overhead System Component View:

Figure 41-Cover Removal:

Figure 42-Rear Wiring Harness:

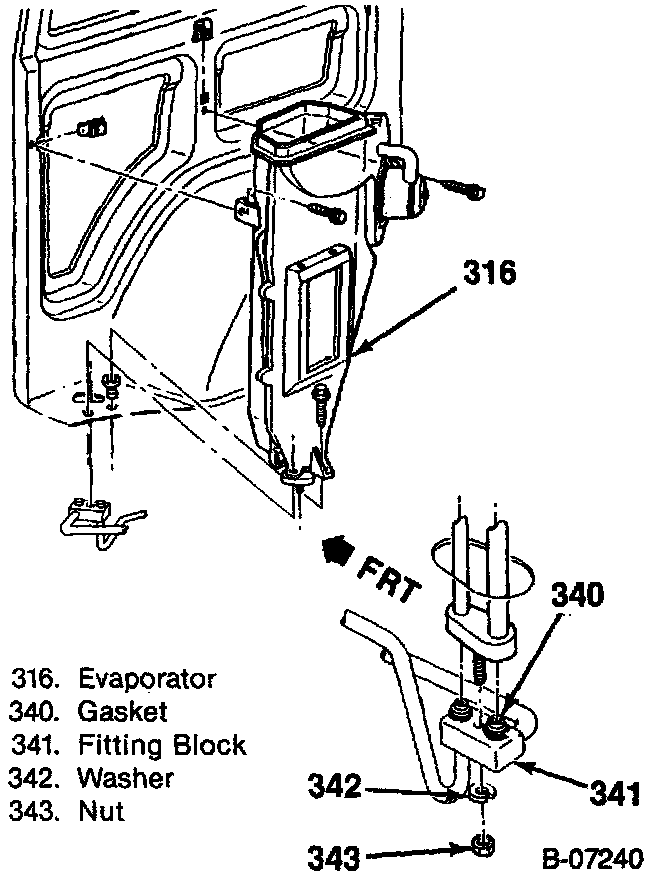

Figure 43-Blower Motor And Evaporator Assembly Replacement:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Refrigerant from the system.
3. Storage Box.
4. Cover assembly (314).
5. Electrical connections (336 and 337).
6. Nut from the fitting block (343).
7. Screws that hold the assembly to the body.
8. Blower motor and evaporator assembly (316).

INSPECT
Gaskets (340) for damage; if damaged, replace.

INSTALL OR CONNECT
1. Gaskets (340) to inlet and outlet refrigerant lines.
2. Blower motor and evaporator assembly.
^ Tighten
^ Screws to 5 Nm (4 in. lbs.).
^ Nut (343) to the fitting block 25 Nm (18 ft. lbs.).
3. Electrical connections (336 and 337).
4. Cover assembly (314).
5. Storage Box.
6. Refrigerant to the system.
7. Negative battery cable.
