Compressor Diagnosis - RPO LB4
Compressor Diagnosis - RPO LB4

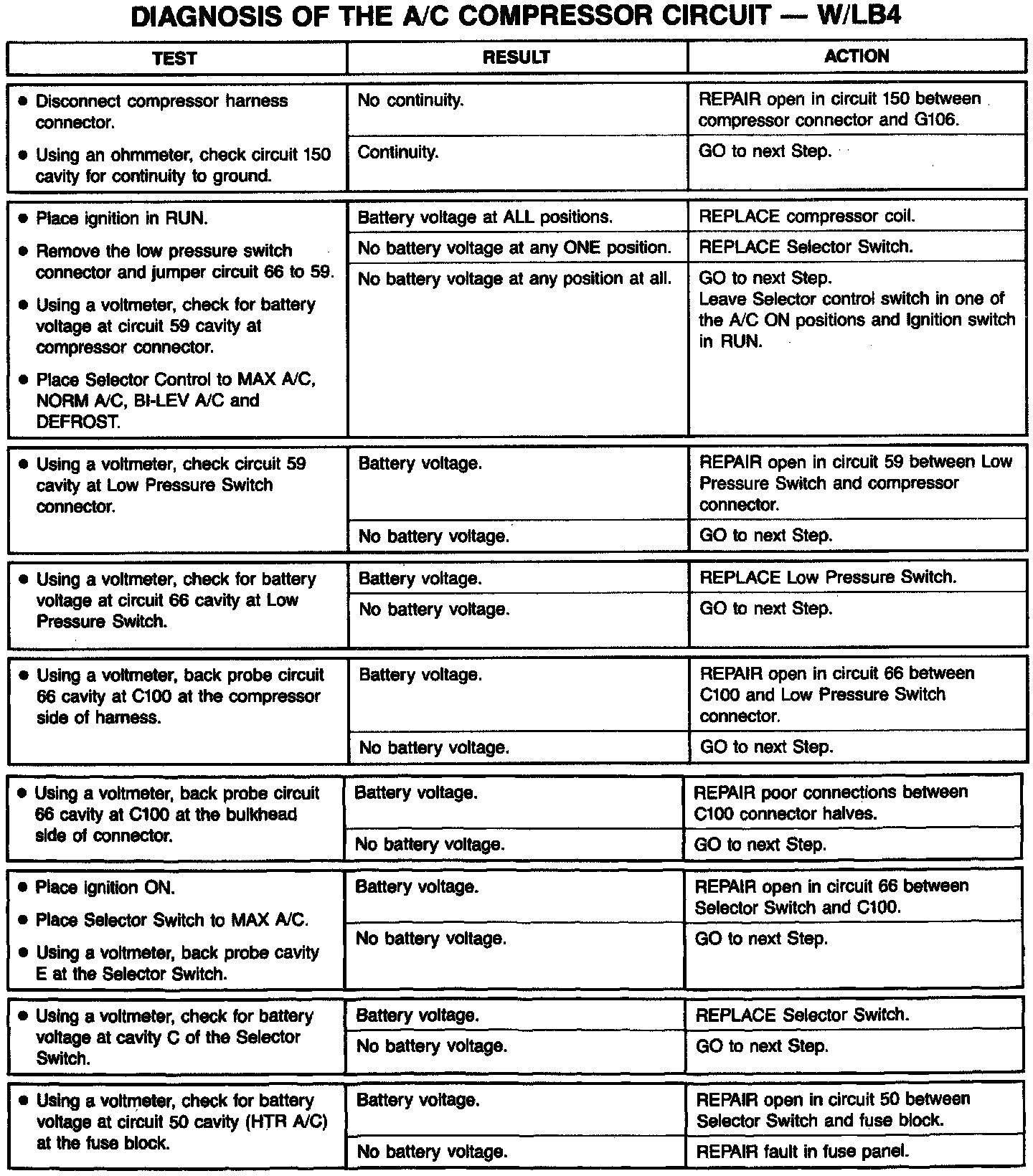

Diagnosis- A/C Compressor Circuit W/ LB4:
