System Specifications

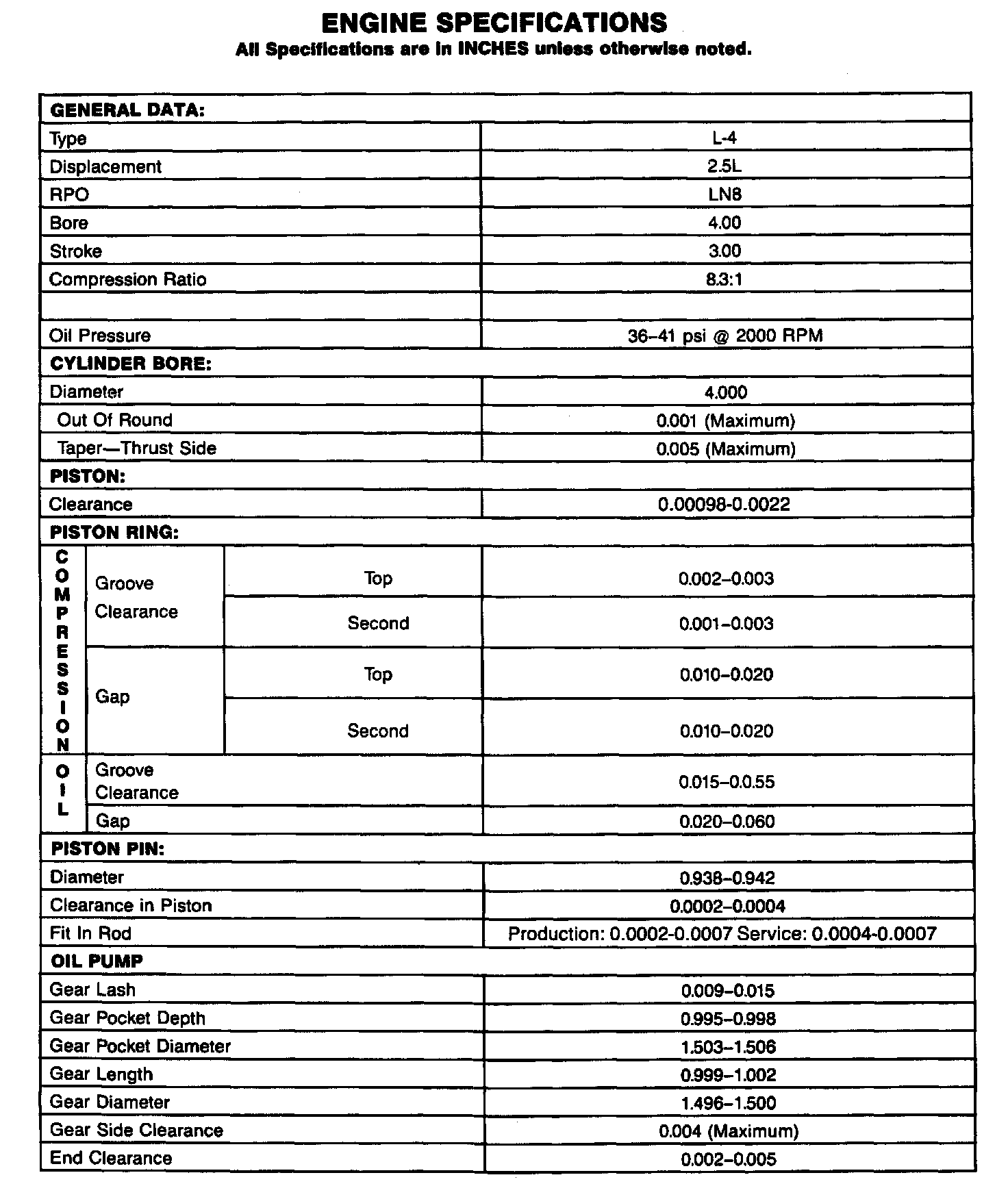

Engine Specifications:




Continued Engine Specifications:

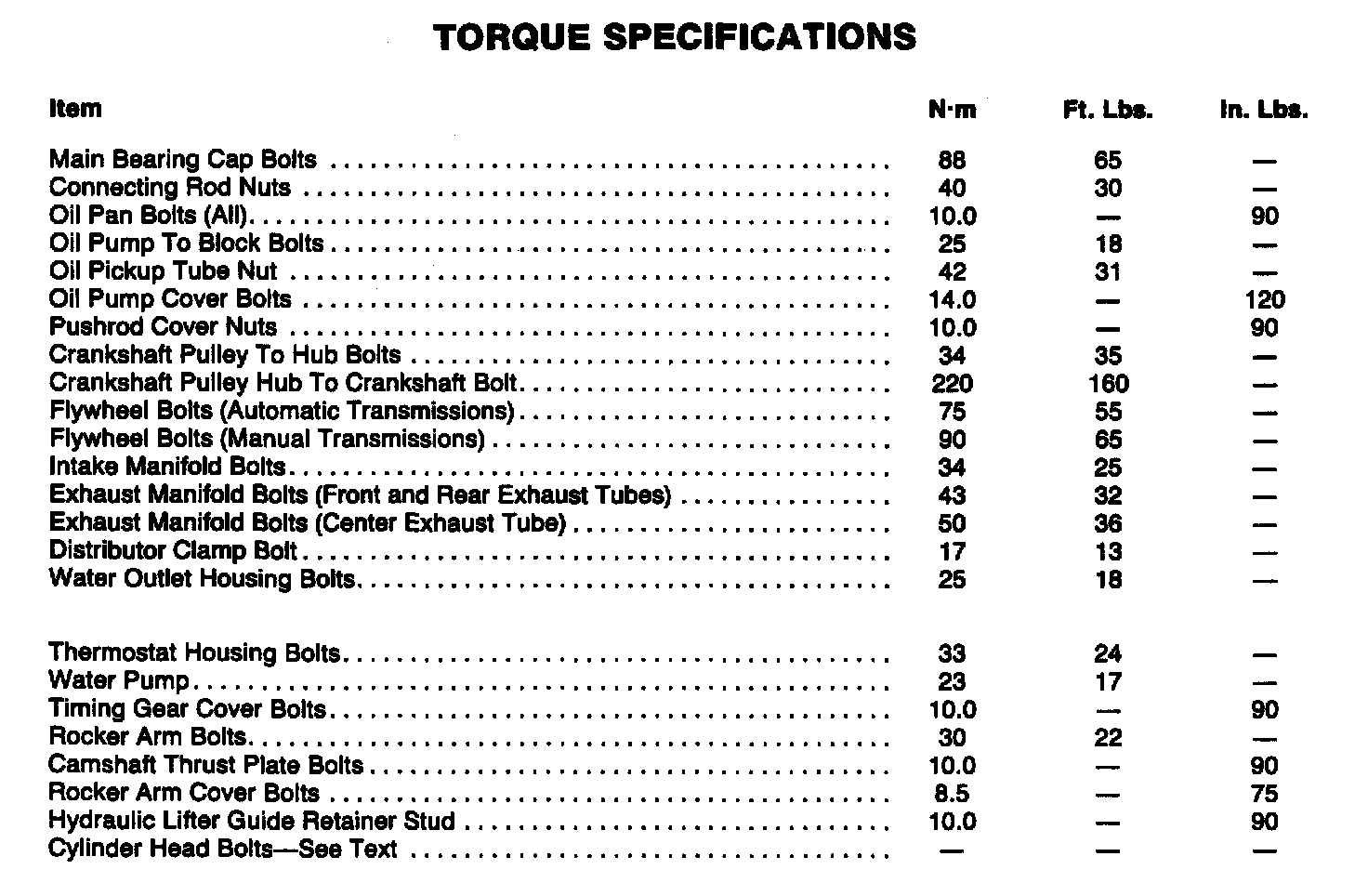

Torque Specifications:






Cylinder Head Sequence:
