Lower

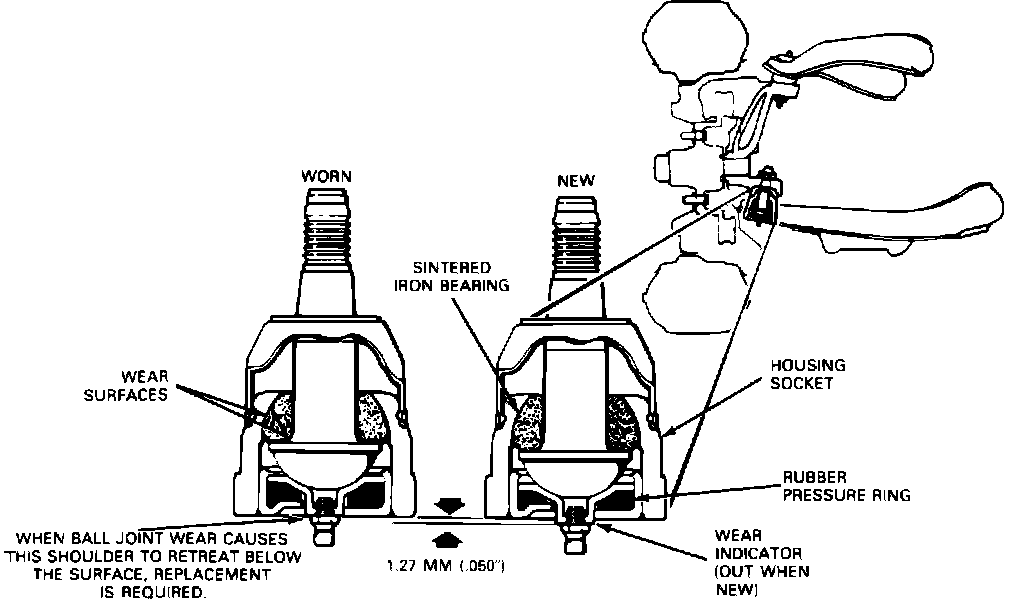

Fig. 18 Lower Ball Joint Wear Indicators:

Prior to inspecting ball joints, ensure wheel bearings are properly adjusted.
The lower ball joint is equipped with a visual wear indicator, Fig. 18. Check ball joint with vehicle weight resting on wheels.
