Control Arm Bushing: Service and Repair

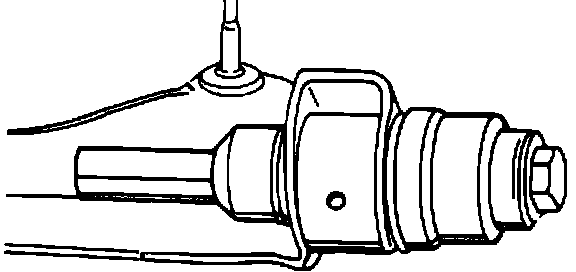

Fig. 5 Lower Control Arm Front Bushing Removal:

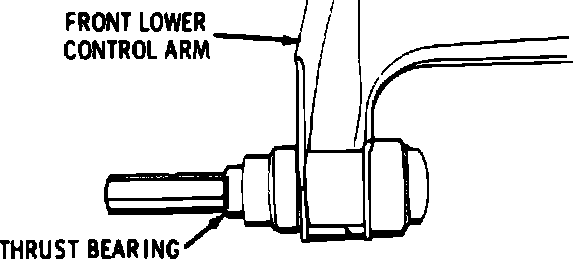

Fig. 6 Lower Control Arm Rear Bushing Removal:

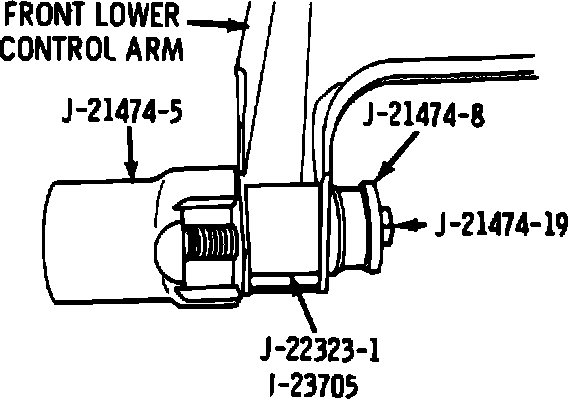

Fig. 7 Lower Control Arm Front Bushing Installation:

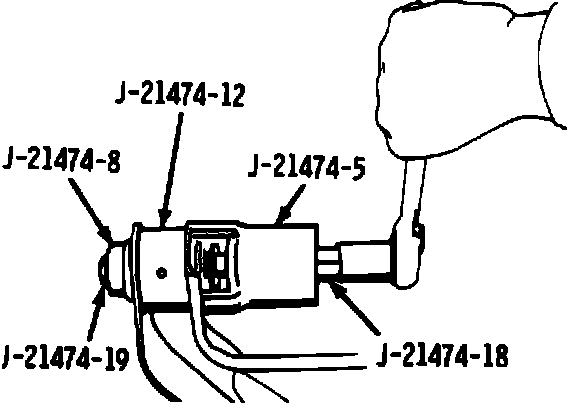

Fig. 8 Flaring Lower Control Arm Front Bushing:

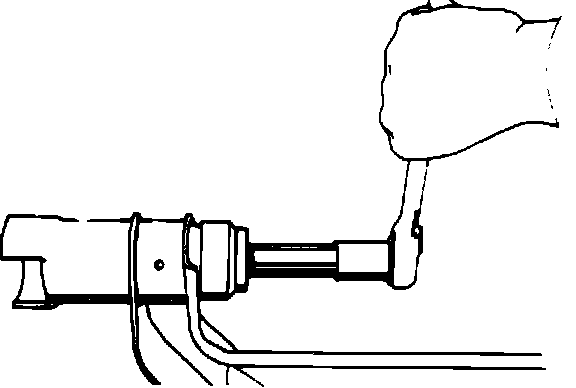

Fig. 9 Lower Control Arm Rear Bushing Installation:

1. Remove lower control arm as described in LOWER CONTROL ARM.
2. Drive bushing flare down flush with rubber of front bushing, then remove front and rear bushings from control arm, Figs. 5 and 6.
3. Install front bushing, Fig. 7, then flare the bushing, Fig. 8.
4. Install rear bushing, Fig. 9, then the lower control arm.
