Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1989
>>
G 20 Van V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Diagrams
>>
Electrical Diagrams
>>
Without Delay Module
Without Delay Module

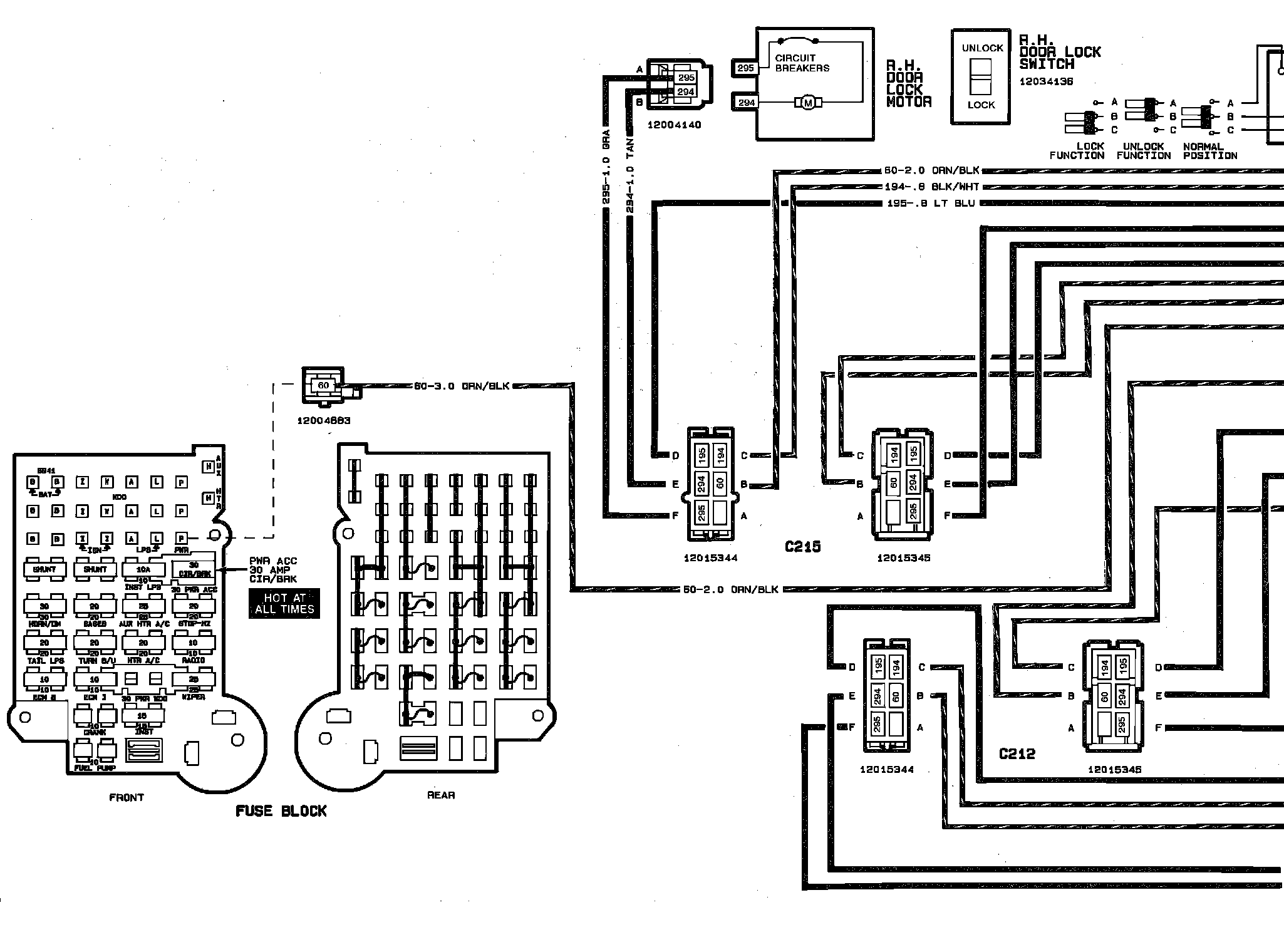

�ɠ>� �>Power Door Locks (Less Delay Module):
