Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1989
>>
G 30 Van V8-350 5.7L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Diagrams
>>
Electrical Diagrams
>>

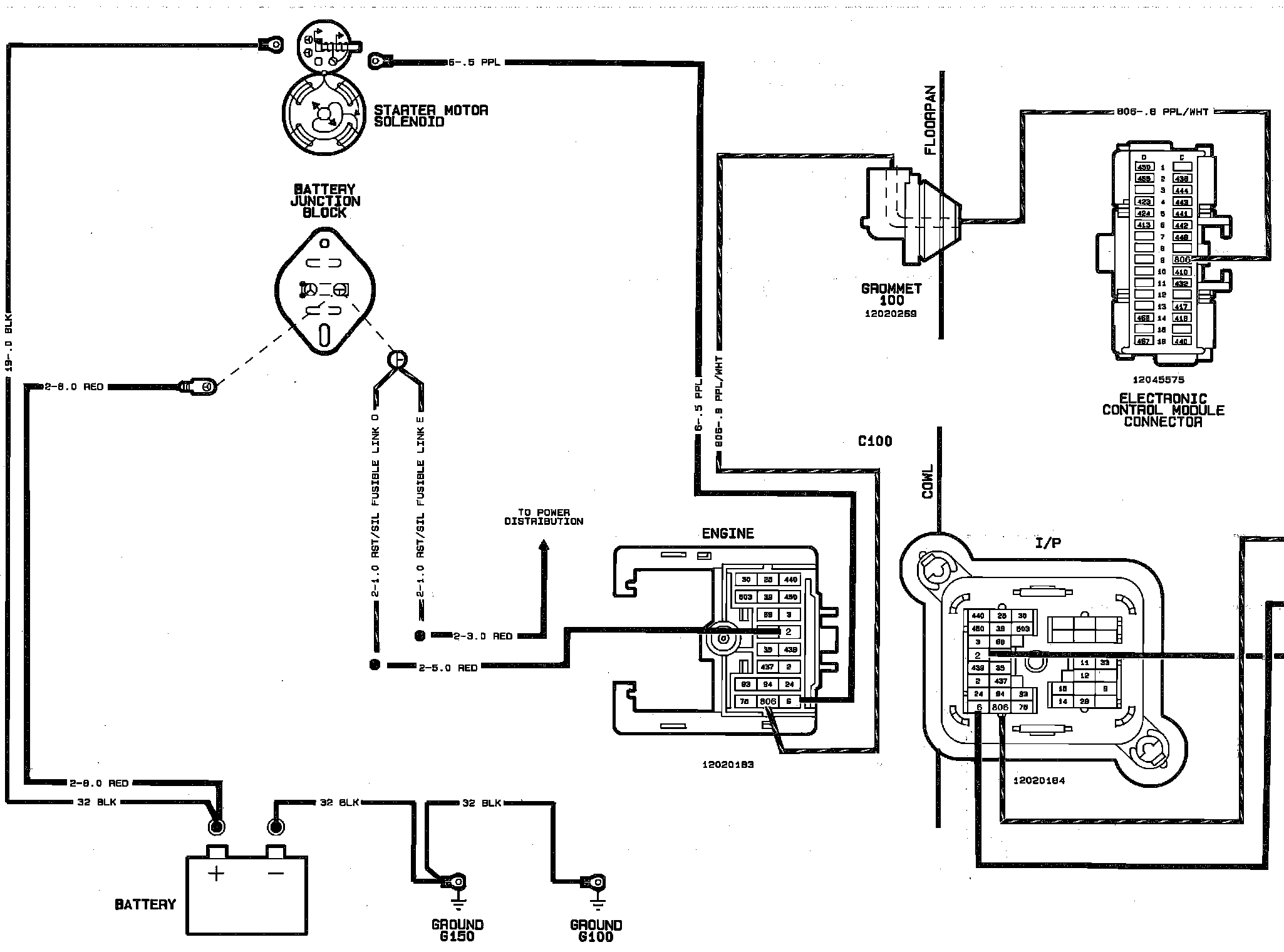

Starting System
Starting System
Rw3.Bw3Starter:
