Vehicle Speed Sensor

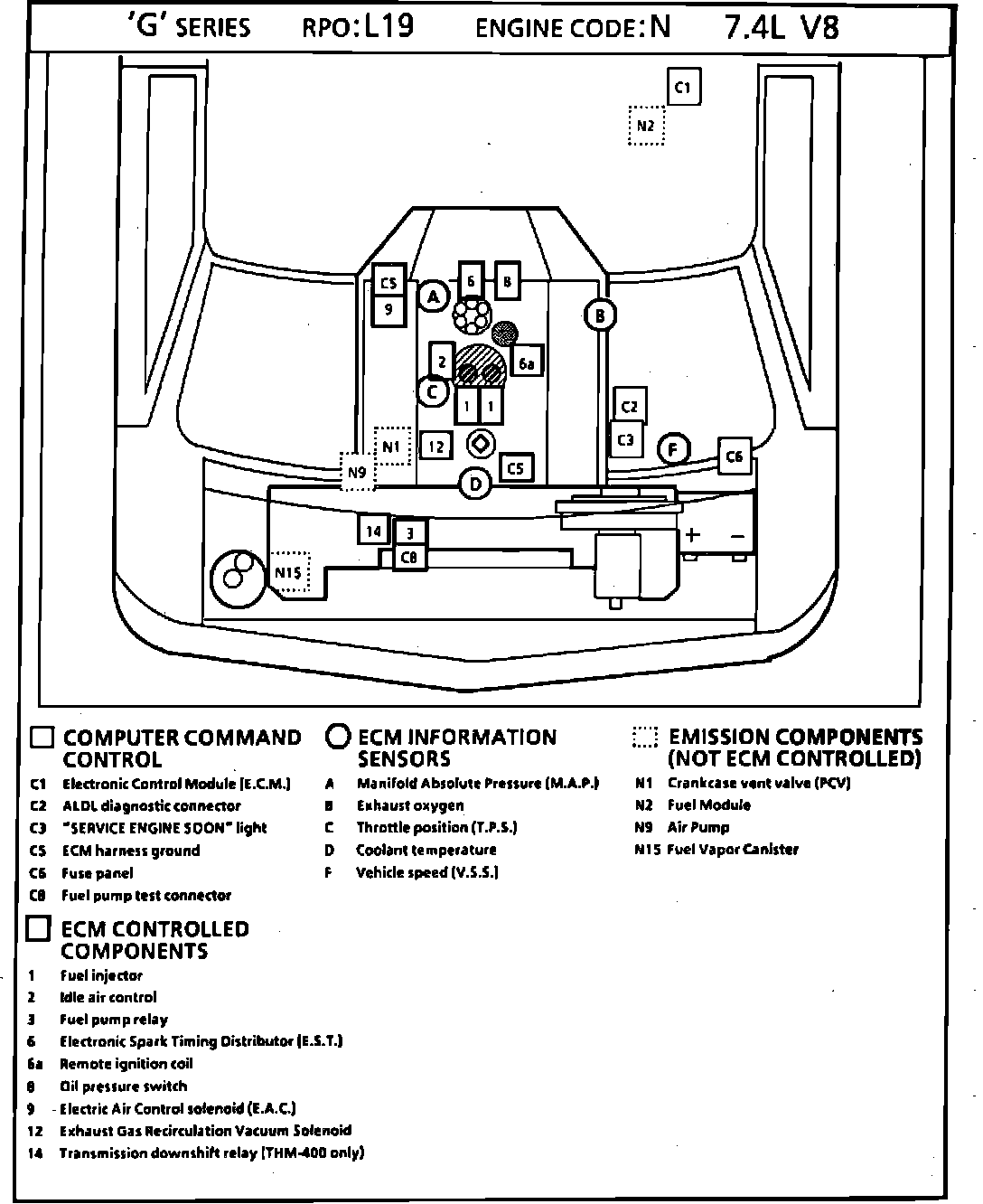

Vehicle Speed Sensor
Engine Compartment.:
Under Center Of I/P
Applicable to: G Series w/V8-454/7.4L Engine
