Chevy Truck
>>
1989
>>
K 1500 Truck 4WD V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Fuel Control & Delivery
>>
Heavy Duty Emissions
Heavy Duty Emissions

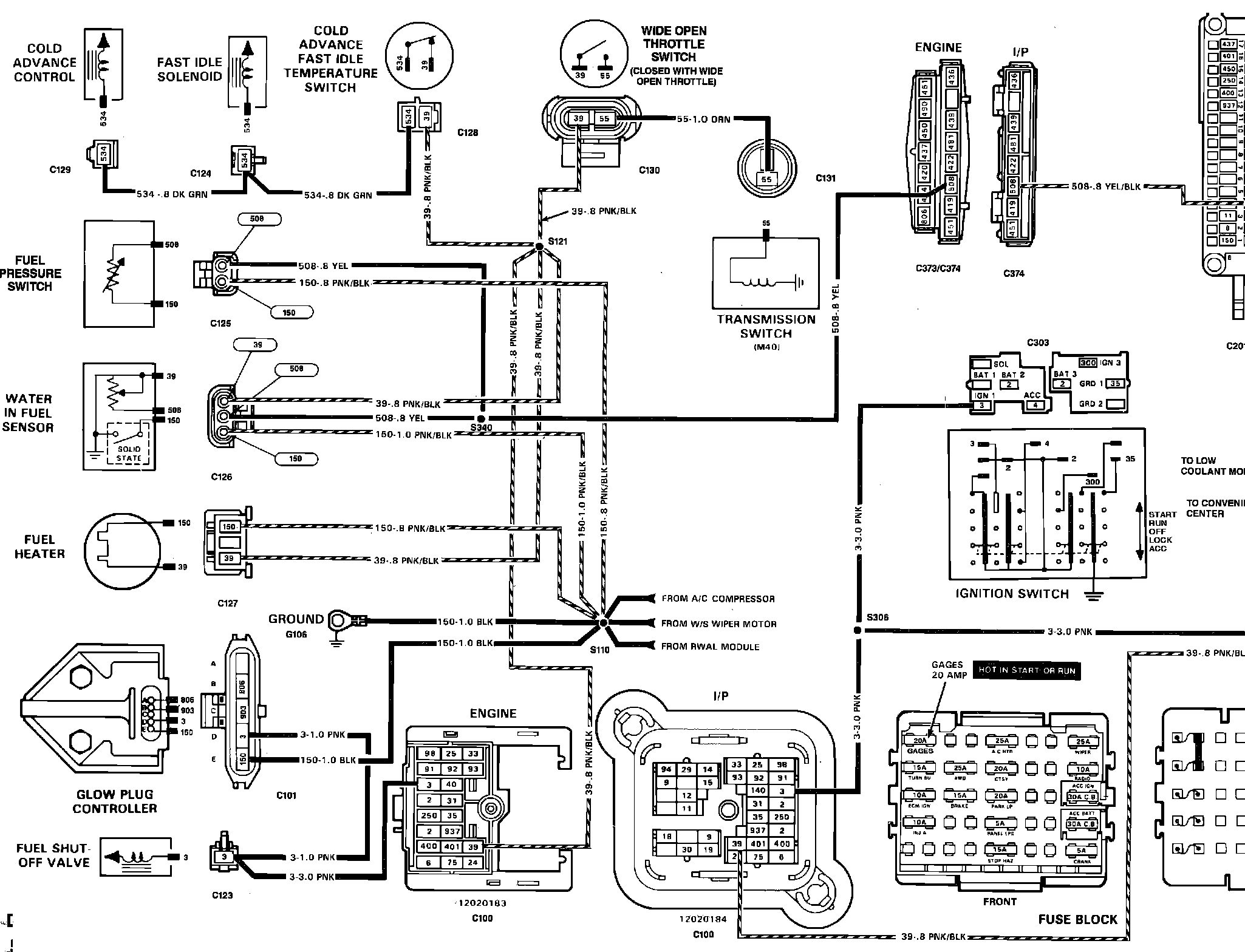

���$Diesel Engine Fuel Controls. Heavy Duty Emissions:
