Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1989
>>
S10/T10 Blazer 2WD V6-173 2.8L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
With Rear Wheel Antilock Brakes (RWAL)
With Rear Wheel Antilock Brakes (RWAL)

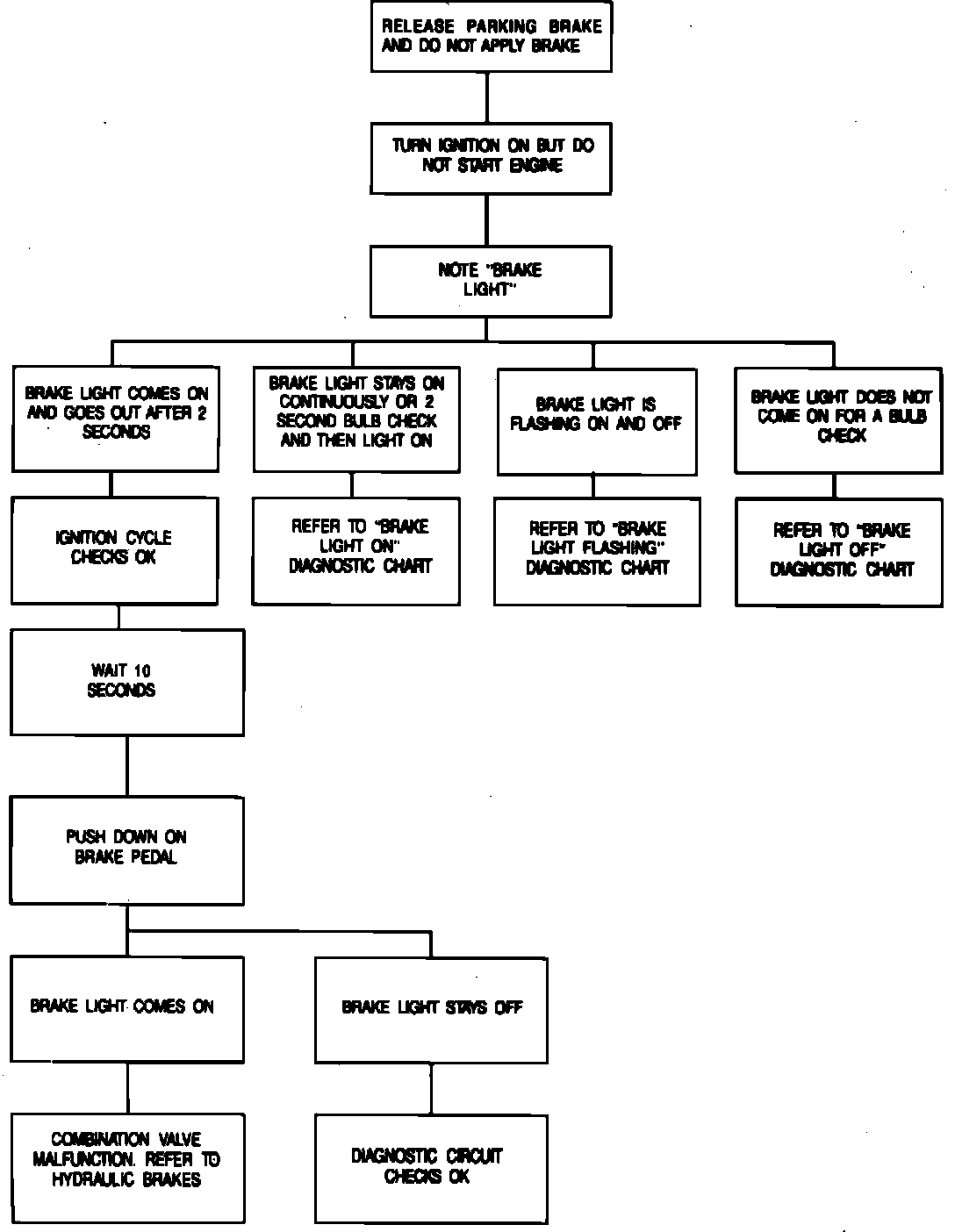

Diagnostic Circuit Check.:
