Without A/C

Air Distribution System Component View:

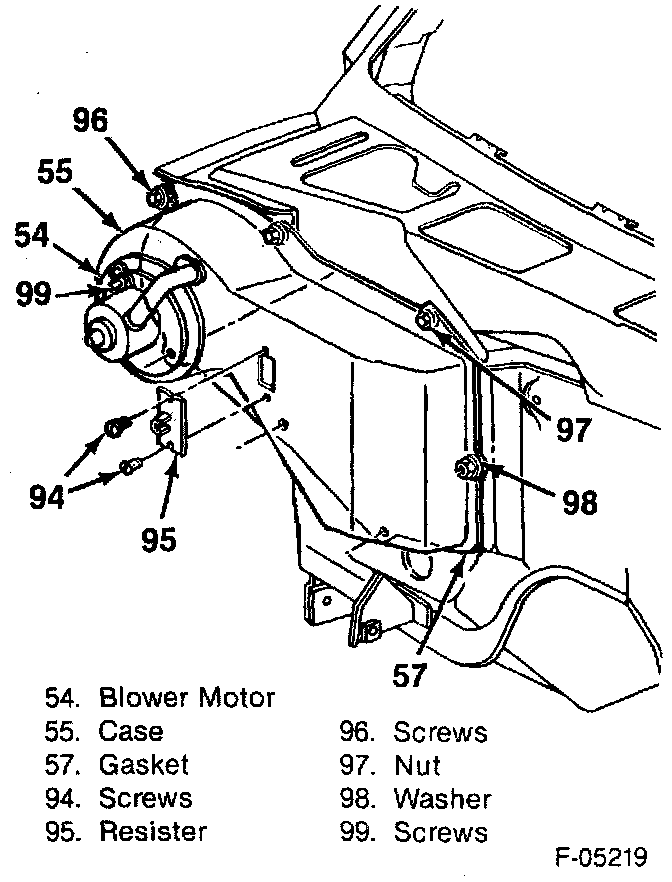

Blower Motor Case:






REMOVE OR DISCONNECT


1. Negative battery cable.

2. Electrical connection (91) at the blower motor (54).

3. Blower motor retaining screws (99).

4. Blower motor (54).


INSTALL OR CONNECT

1. Blower motor (54).

2. Screws (99).

^ Tighten screws (99) to 2 Nm (18 in. lbs.).


3. Electrical connection (91) to the blower motor (54).

4. Negative battery cable.
