Chevy Truck
>>
1989
>>
S10/T10 P/U 2WD L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Battery Junction Block
>>
Non A/C
Non A/C

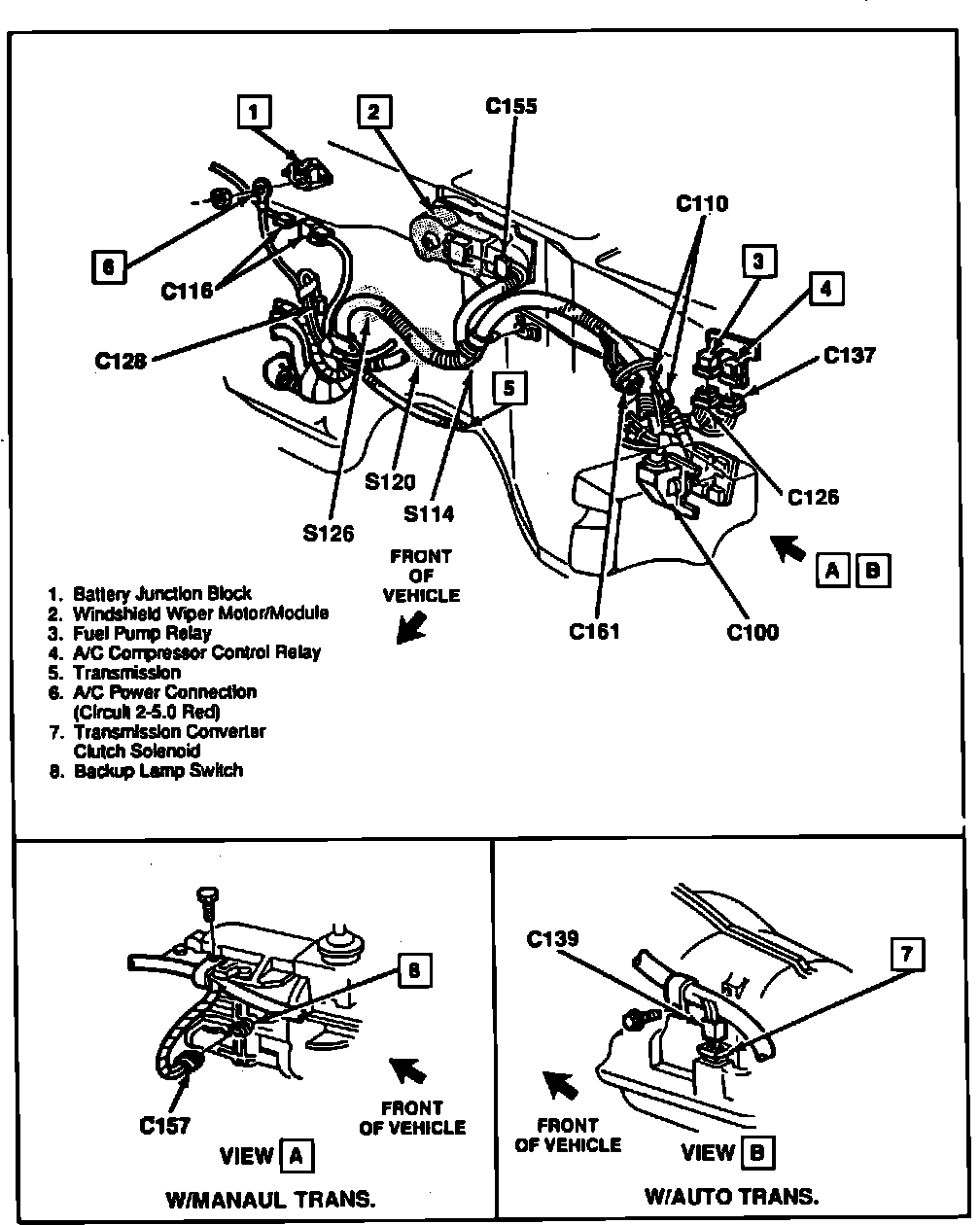

Dash Panel Components.:
RH Side Of Dash Panel, Engine Compartment
Applicable to: 4-151/2.5L
